Details:
This three-digit combination lock for drawers comes in five specifications: 16mm, 20mm, 25mm, 30mm, and 40mm, accurately matching different material thickness requirements: the 16mm and 20mm specifications are suitable for thin materials, mainly used in steel office furniture scenes, such as office filing cabinets, financial voucher drawers, administrative storage iron cabinets, etc.;
Send Inquiry
Chat Now
Description
Send Inquiry

Products Description

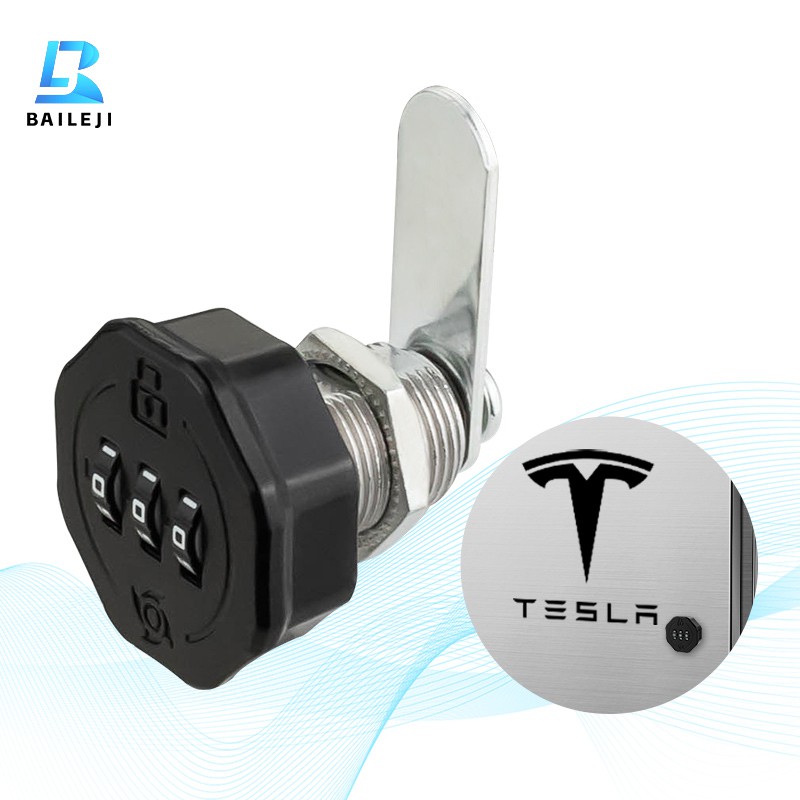

The Three-digit Combination Lock for Drawers is a compact mechanical cam lock designed for drawers, cabinets, filing systems, and furniture storage units. It provides keyless access through a three-digit combination mechanism, eliminating the need for a physical key or battery.

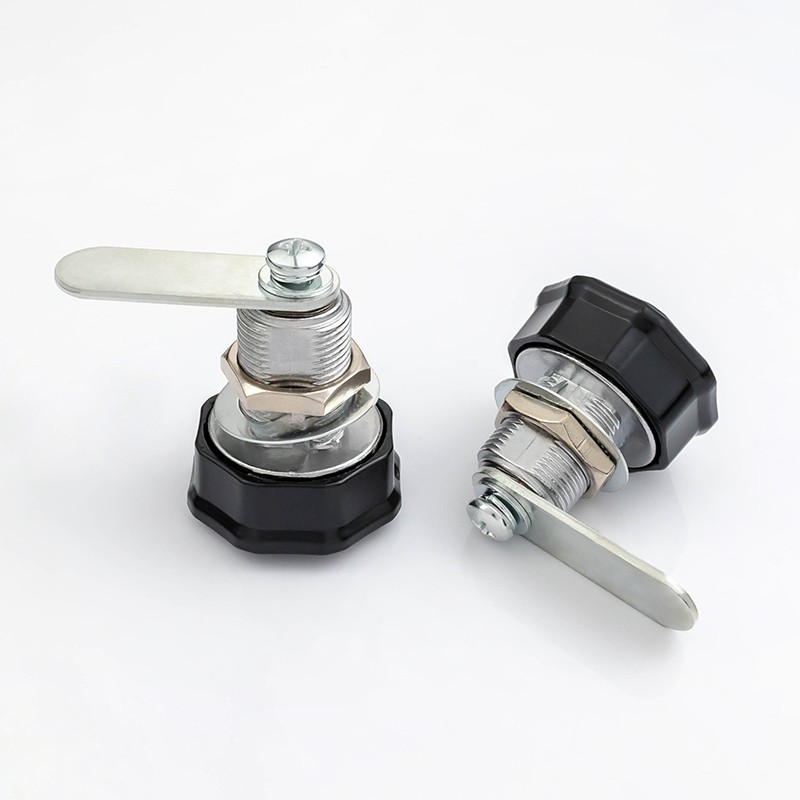

The lock features a zinc alloy body, metal combination mechanism, and rotating cam for single-point locking. Five cylinder lengths are available-16mm, 20mm, 25mm, 30mm, and 40mm-to accommodate different panel thicknesses and furniture constructions.

The combination can be reset when required, making the lock suitable for furniture and storage applications where users need convenient keyless access.

product-396-384

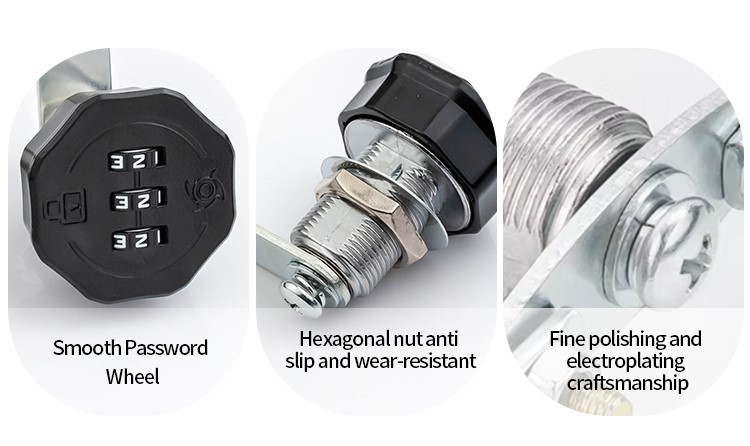

Key Features

product-750-446

3-digit combination mechanism for keyless locking and unlocking

Up to 1,000 possible combinations using the three-number dialing system

Resettable combination for changing the access code when required

Zinc alloy housing for a solid and durable mechanical structure

Five cylinder length options to suit different panel thicknesses

Anti-rotation fixing helps keep the lock securely positioned after installation



Product Specifications

Parameter Details
Product Name Three-digit Combination Lock for Drawers
Model 66020
Lock Type Mechanical Combination Cam Lock
Material Zinc Alloy
Color Black
Combination 3-digit
Cylinder Length 16mm / 20mm / 25mm / 30mm / 40mm

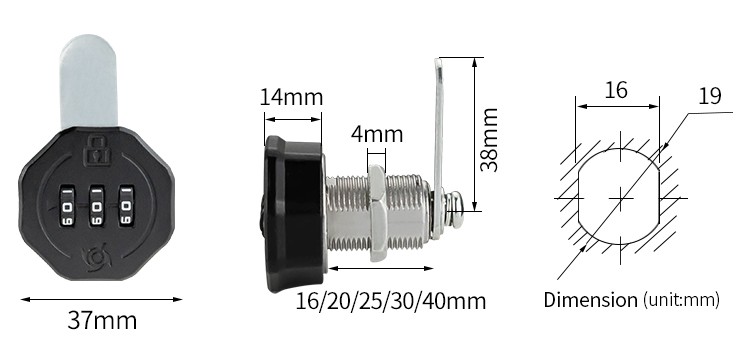

Mounting Hole 16 × 19mm
Locking Method Rotating Cam
Operation Combination Dial + Knob
Power No Battery Required

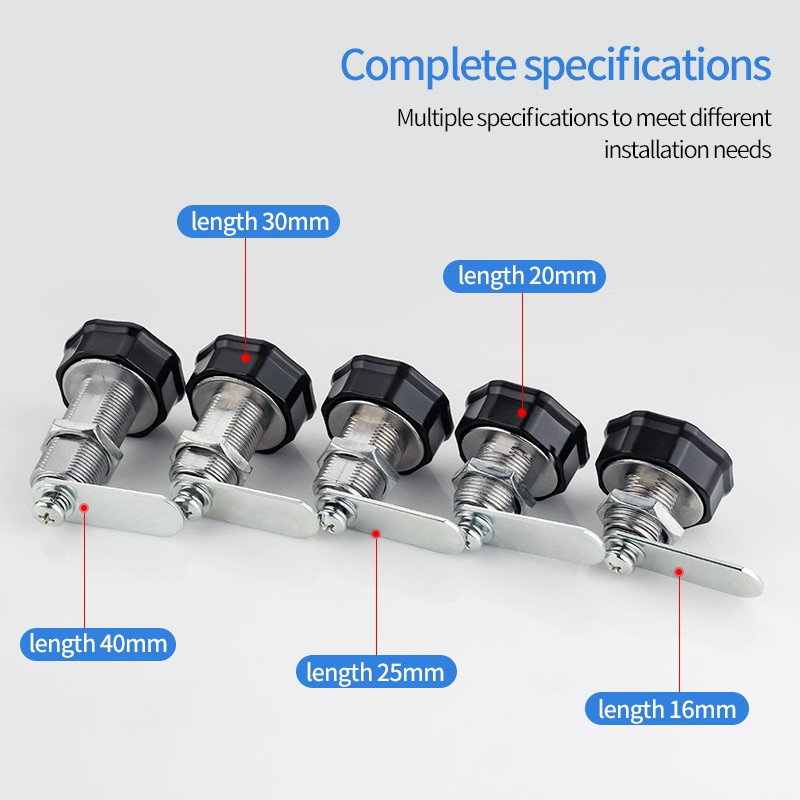

Cylinder Length Selection





The cylinder length should be selected according to the thickness of the mounting panel and the available space behind the drawer or cabinet front.



Cylinder Length Typical Use
16mm Thin metal panels and compact office furniture
20mm Filing cabinets and metal office storage
25mm Medium-thickness wooden furniture
30mm Wooden drawers and cabinet doors
40mm Thicker wooden panels and furniture structures

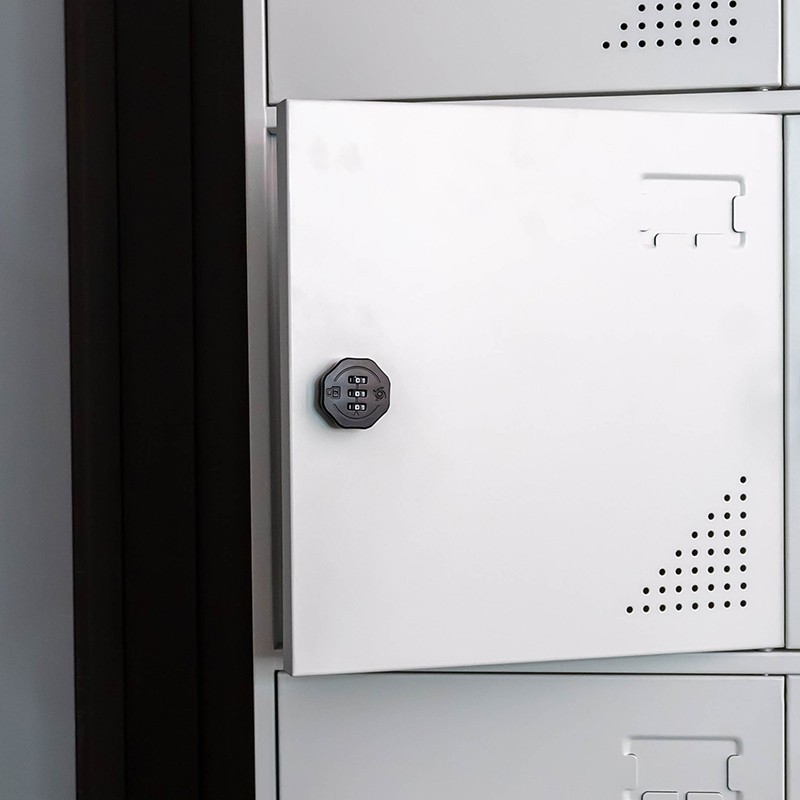

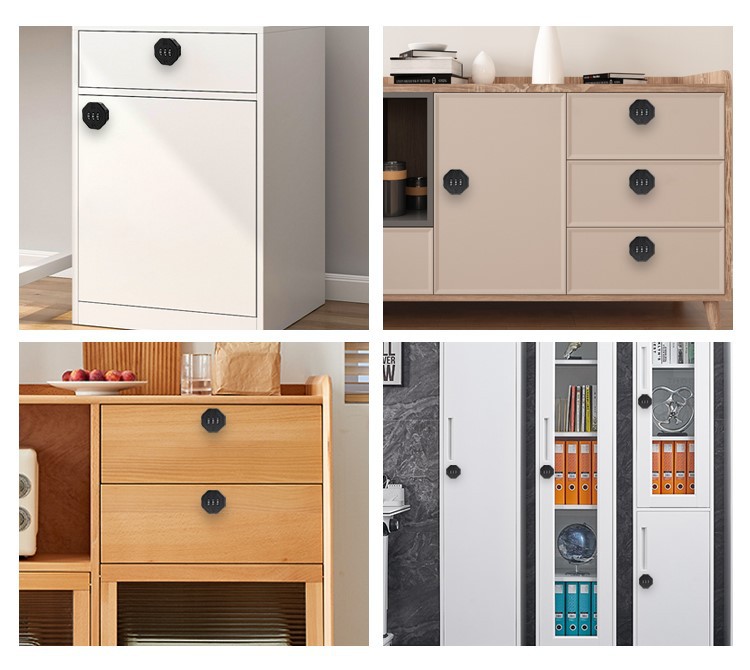

Application

product-750-670



This mechanical combination lock can be used for:

Filing cabinets

Office drawers

Pedestal cabinets

Wooden furniture drawers

Storage cabinets

Lockers

Mailboxes

Document and data cabinets

It is suitable for office furniture, household storage, commercial furniture, educational facilities, and other applications requiring simple mechanical access control.



Installation & Operation

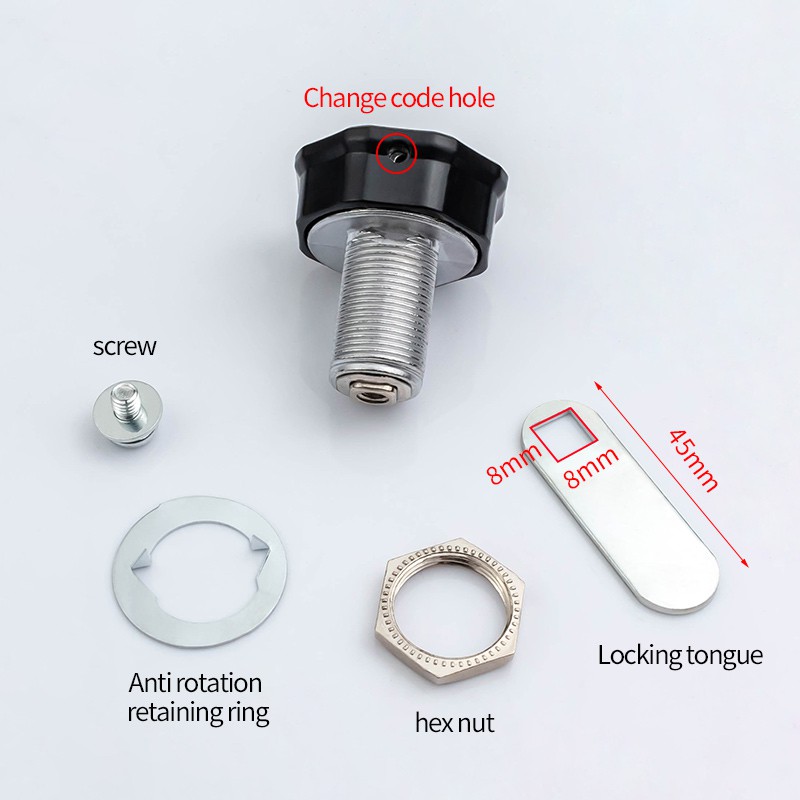

The lock is installed through a 16 × 19mm mounting hole and secured to the panel from the rear. An anti-rotation washer helps prevent the lock body from turning during repeated use.

To unlock the drawer or cabinet, the user dials the correct three-digit combination and turns the knob. The rear cam rotates to release the locking point. After closing the drawer or door, the numbers can be scrambled to prevent access using the visible combination.

The combination reset procedure should be carried out according to the specific lock configuration and supplied installation instructions.

product-750-354


FAQ


FAQ

Q: How do I choose the right cylinder length?

A: Choose the cylinder length according to the mounting panel thickness and the available space behind the drawer or cabinet. The 16mm and 20mm versions are generally suitable for thinner metal panels, while the 25mm, 30mm, and 40mm versions can be used for thicker furniture panels.

Q: Can the combination be changed after installation?

A: Yes. The lock uses a resettable mechanical combination. The specific reset procedure depends on the lock configuration and should be followed according to the supplied instructions.

Q: Can this lock be used for both metal and wooden furniture?

A: Yes. The lock can be integrated into both metal and wooden furniture. The appropriate cylinder length should be selected according to the panel construction.

Q: Is this lock suitable for OEM furniture production?

A: Yes. It is suitable for furniture manufacturers, cabinet suppliers, and distributors. Different cylinder lengths can be selected according to the requirements of individual furniture models or production projects.

Q: What information is needed for a bulk order?

A: For quotation and production, buyers should provide the required quantity, cylinder length, application, and any packaging or OEM requirements. If the required specification is uncertain, panel thickness and installation dimensions can be provided for confirmation.
