Best Drawer Security Locks

Best Drawer Security Locks
Details:

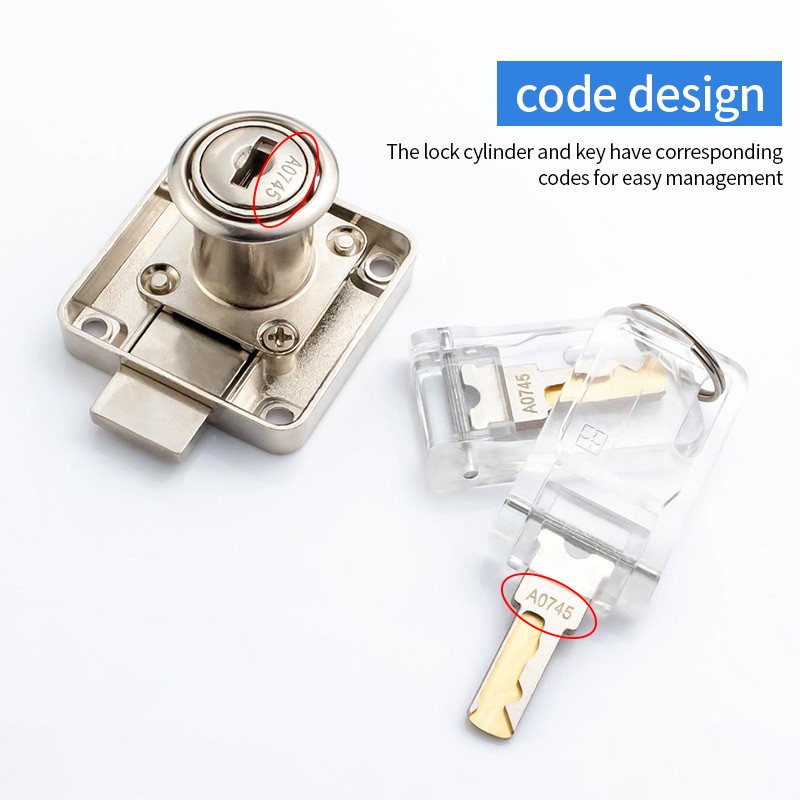

6XH # Best Drawer Security Locks, the lock body is made of high-strength zinc alloy die-casting, with a sturdy structure, wear-resistant, and rust-proof. It is equipped with 2 transparent folding keys, which are easy to store and convenient to store. It comes standard with mounting plates and fixing screws at the factory, and no additional accessories need to be purchased. It can be installed easily.
Send Inquiry
Chat Now
Description
Send Inquiry

Products Description

The 6XH Best Drawer Security Locks are designed for office furniture, storage drawers, cabinets, and other applications requiring compact mechanical access control. The lock body is manufactured from high-strength zinc alloy die-casting, providing a solid structure with good resistance to everyday wear and corrosion.

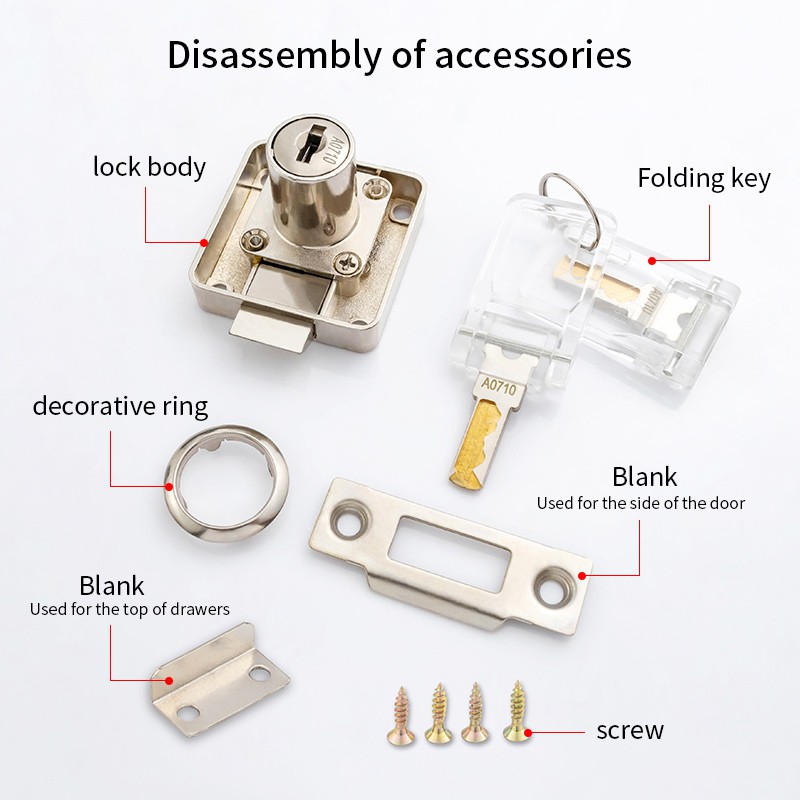

Each lock is supplied with two foldable keys, along with the required mounting plate and fixing screws. This ready-to-install configuration helps simplify installation without the need to purchase additional standard mounting hardware.

product-365-363



Key Features

product-750-709

High-strength zinc alloy body for a solid and durable structure

Chrome-plated surface for a clean appearance and added surface protection

19 mm mounting hole for straightforward installation

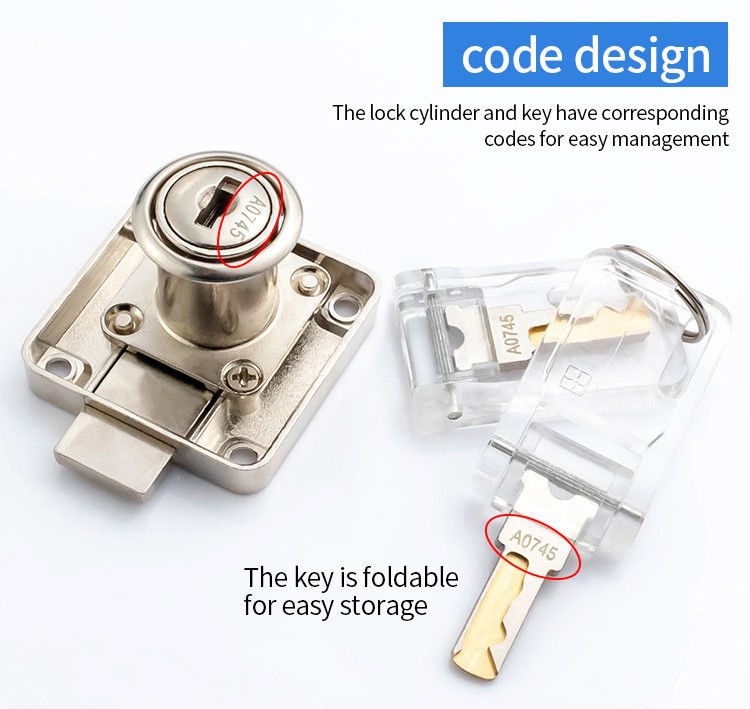

Two foldable keys included with each lock

Two locking tongue options for different application requirements

Mounting plate and fixing screws included

180° key rotation for unlocking

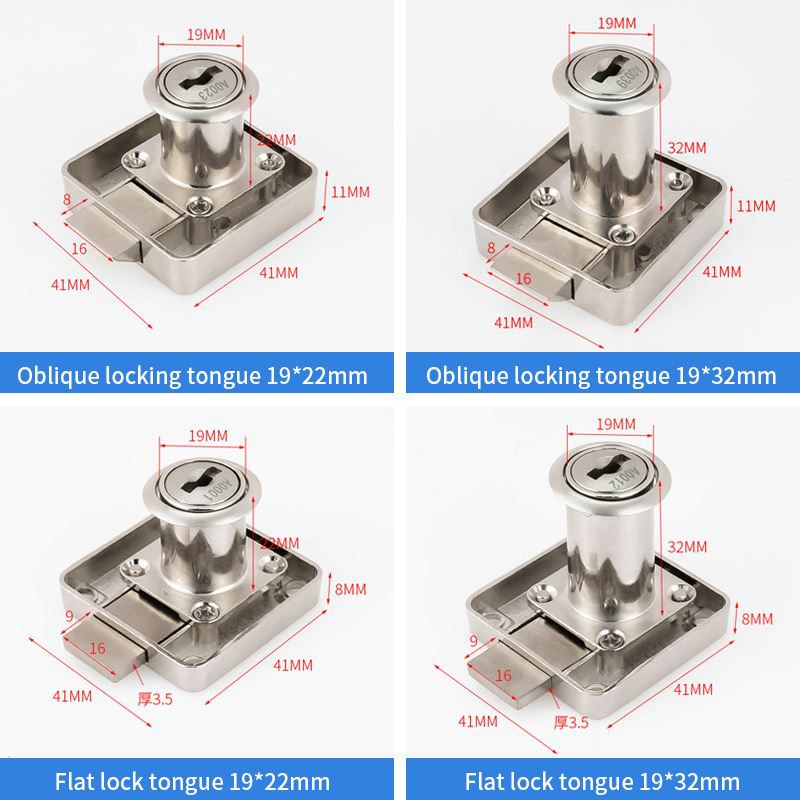

22 mm and 32 mm cylinder lengths available



Product Specifications

Parameter Details
Model 6XH
Product Name Best Drawer Security Locks
Product Type Mechanical Drawer Lock
Main Material Zinc Alloy
Surface Treatment Chrome Plating
Cylinder Length 22 / 32 mm
Operation 180° Rotation to Unlock
Key 2 Foldable Keys
Mounting Hole 19 mm

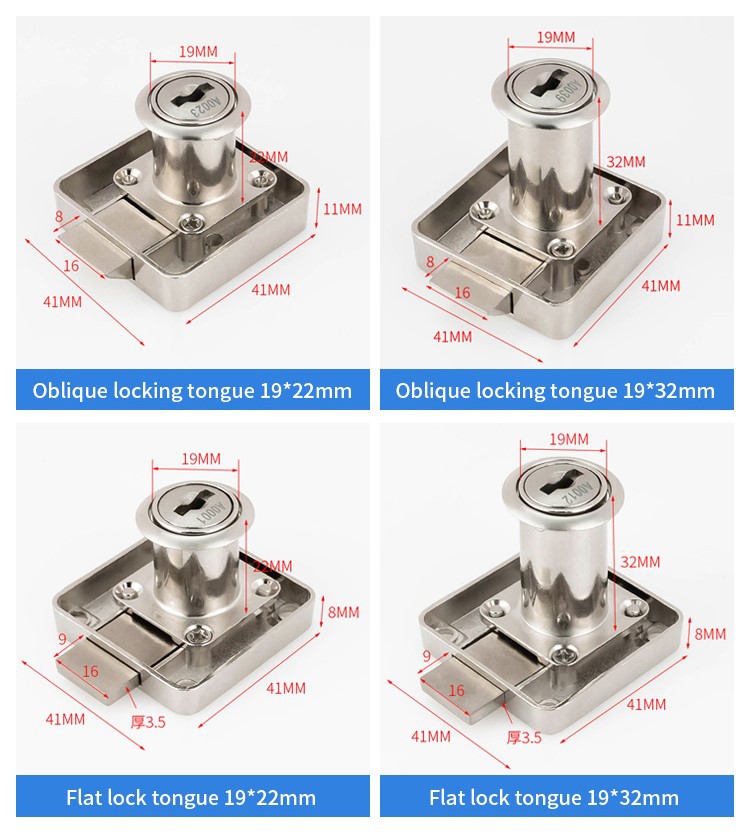

Locking Tongue Flat / Diagonal
Accessories Mounting Plate & Fixing Screws

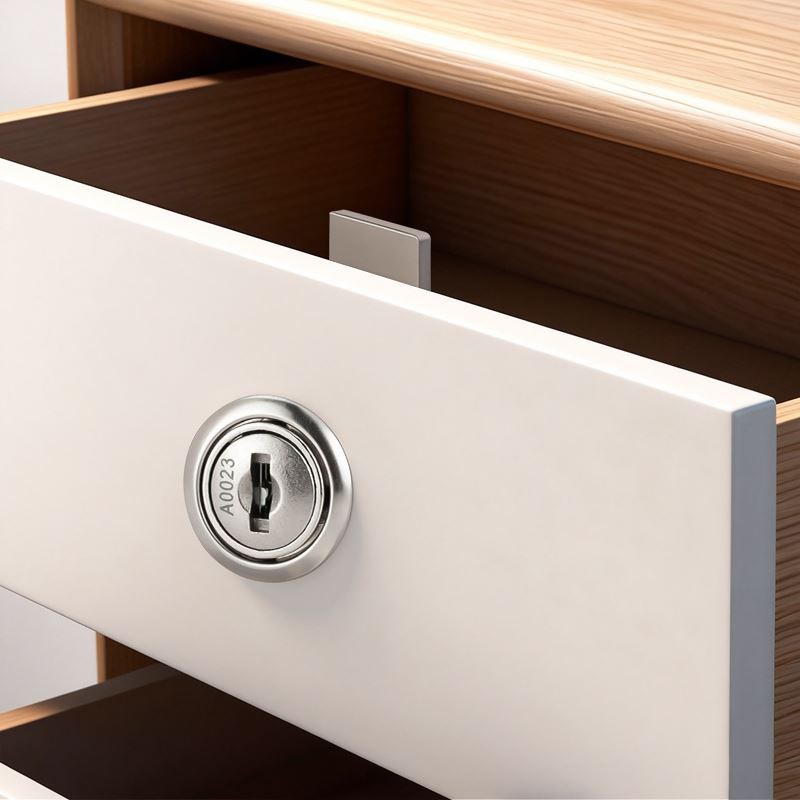

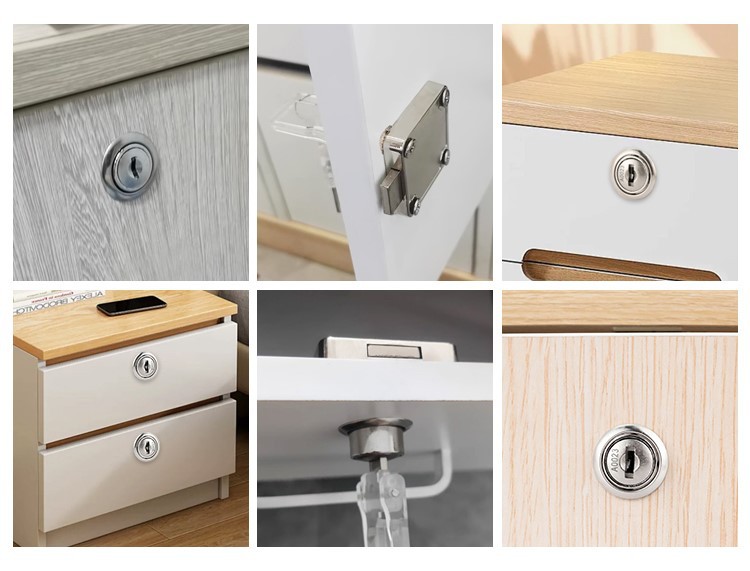

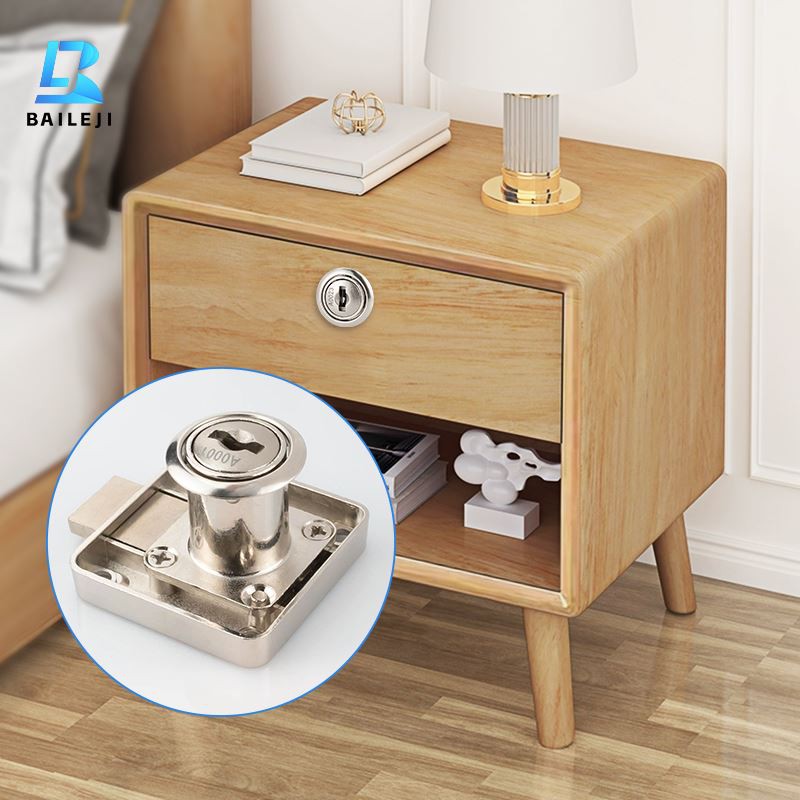

Application



product-750-571



These drawer locks can be used for:

Office furniture

Filing cabinets

Storage drawers

Metal cabinets

Wooden cabinets

Desk drawers

General-purpose storage units

The compact construction makes the lock suitable for furniture and storage applications where a mechanical key lock is preferred over an electronic access system.

Installation and Selection



Before ordering, confirm that the drawer or cabinet has a 19 mm mounting hole and select the appropriate cylinder length according to the door or panel structure.

The locking tongue should also be selected based on the desired operating behavior. The flat tongue provides a fixed locking action, while the diagonal tongue offers automatic spring-back after operation.

For replacement applications, checking the existing lock dimensions and tongue position before ordering can help avoid compatibility issues.





FAQ



Q: How do I choose between the flat and diagonal tongue?

A: Choose the flat tongue when you want the locking component to remain in position after key operation. The diagonal tongue is more suitable when automatic spring-back is preferred for convenient drawer closing.

Q: What mounting hole is required?

A: The lock is designed for a 19 mm mounting hole. The available cylinder lengths are 22 mm and 32 mm.

Q: Are the mounting accessories included?

A: Yes. The standard package includes a mounting plate and fixing screws, so standard installation hardware does not need to be purchased separately.

Q: Are two keys supplied with each lock?

A: Yes. Each lock is supplied with two foldable keys for convenient storage and everyday use.
