Products Description

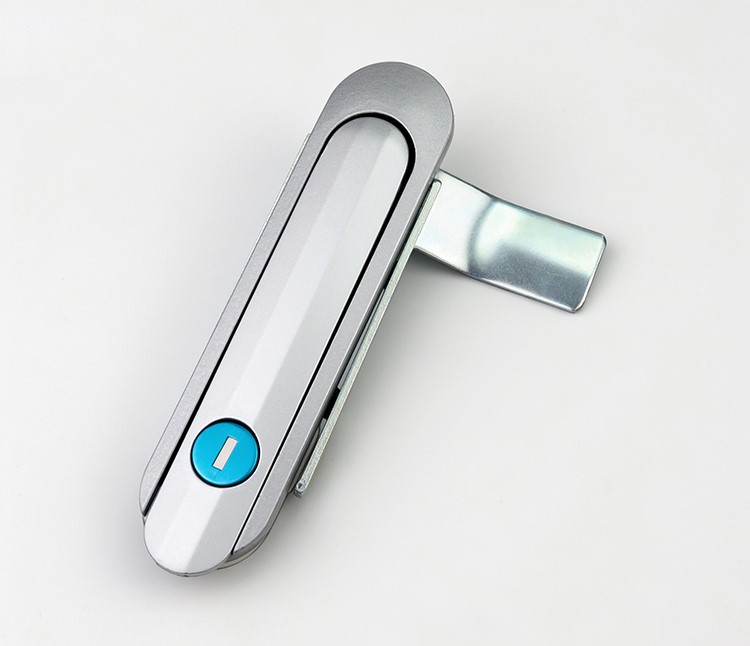

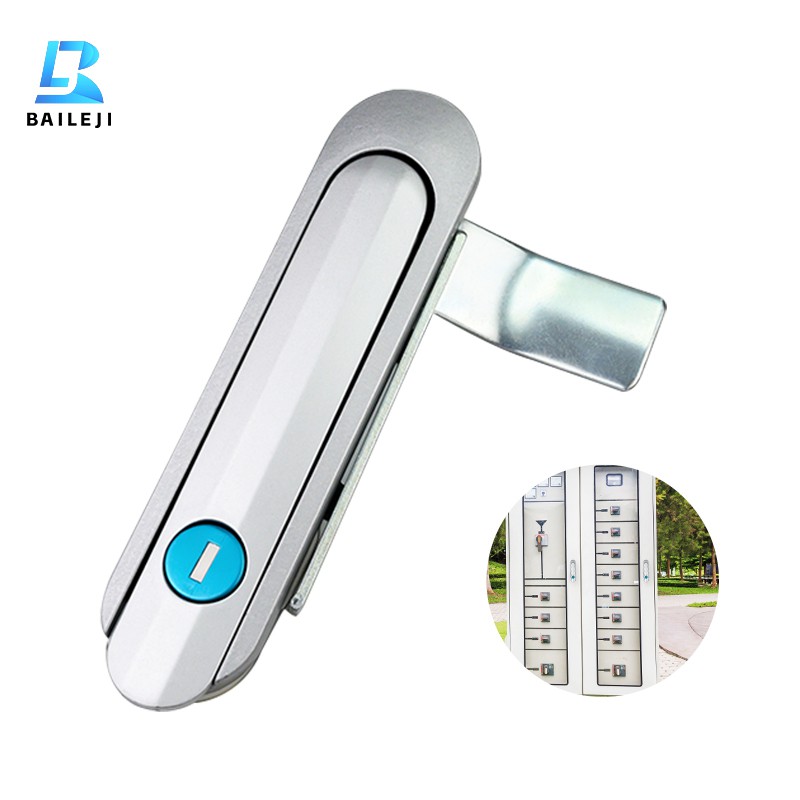

The Baileji Electrical Cabinet Door Flat Lock is a flush-mounted swing handle lock designed for electrical cabinets, distribution enclosures, control panels, and industrial equipment doors. The AB402 combines a zinc alloy housing with carbon steel locking components to provide a compact and durable mechanical locking solution for metal enclosure doors.

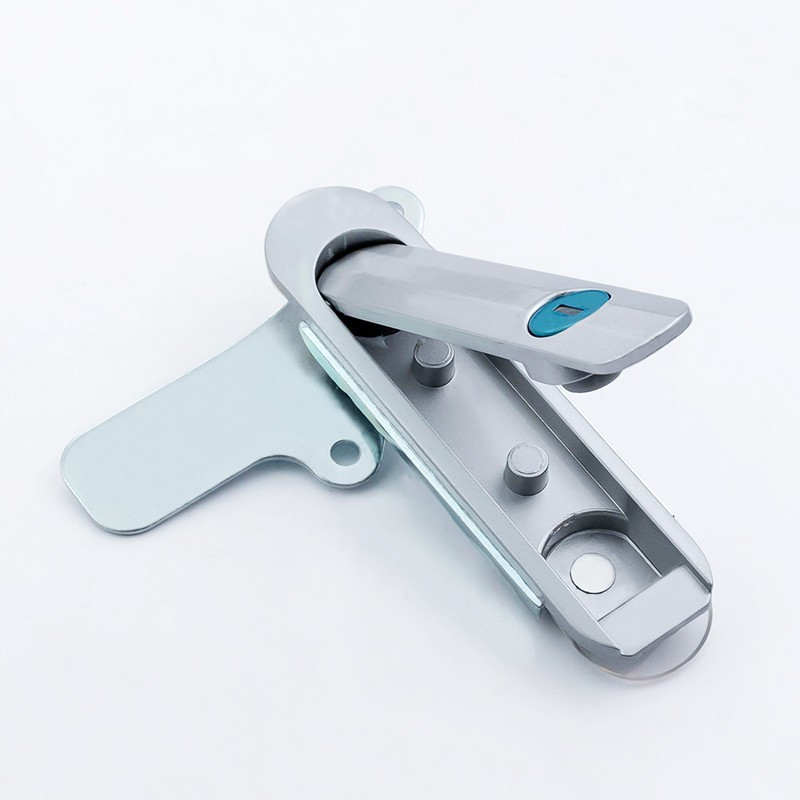

Its lift-and-turn design keeps the handle close to the cabinet surface when not in use. After unlocking with the key, the handle lifts and rotates approximately 90° to operate either a single-point cam or a multi-point rod linkage system.
Key Features
Flush-mounted swing handle for a low-profile cabinet door design
Lift-and-turn operation with approximately 90° handle rotation
Zinc alloy housing and handle assembly
Carbon steel locking components for reliable mechanical engagement

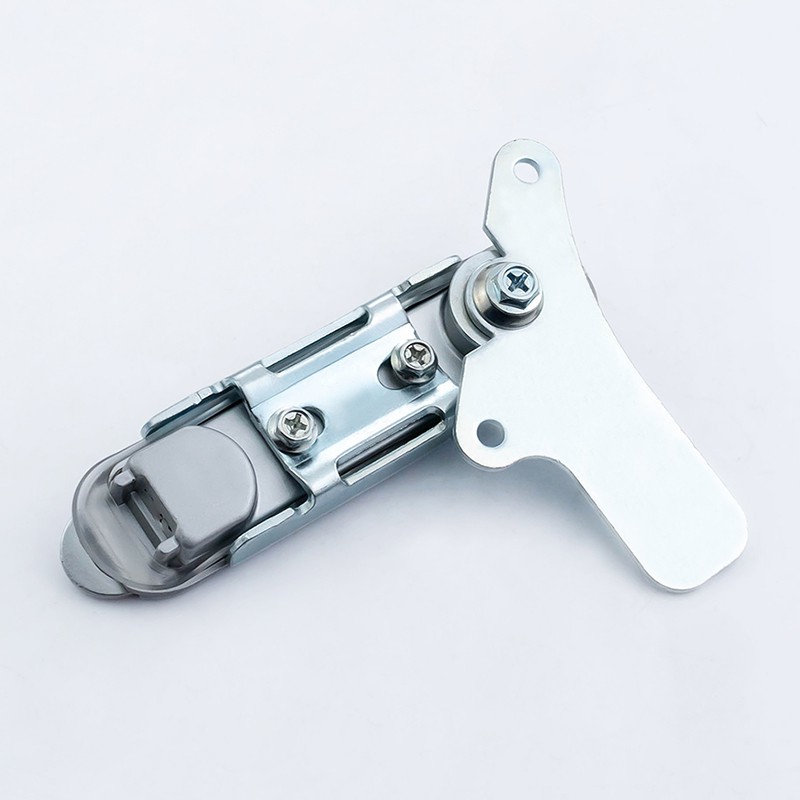

Single-point cam or multi-point rod linkage configurations
Protective shutter over the cylinder
Waterproof rubber gasket for the mounting area

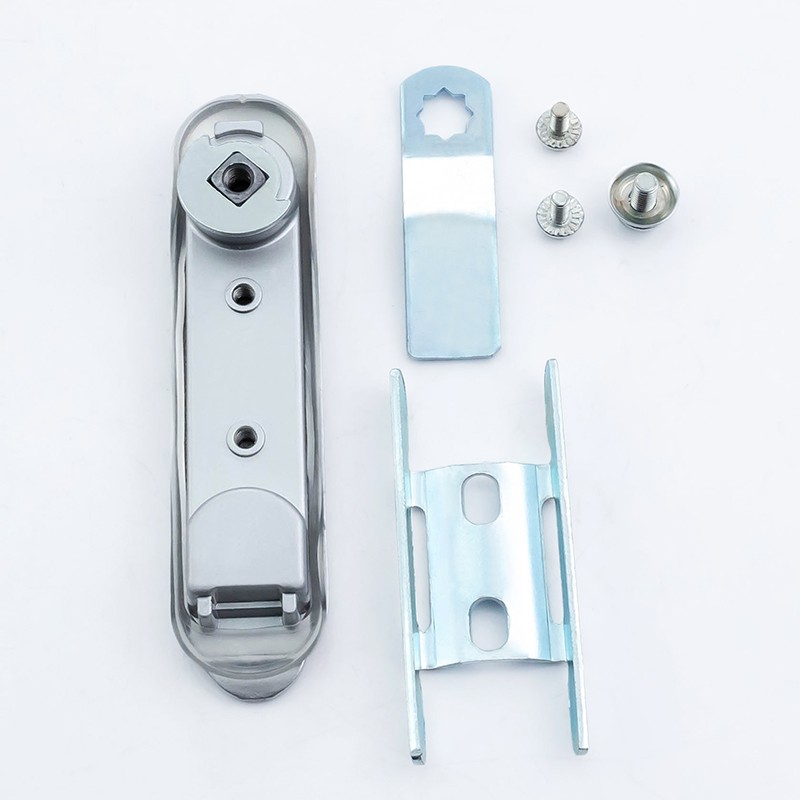

Straight and bent locking plate options
Supplied with two keys

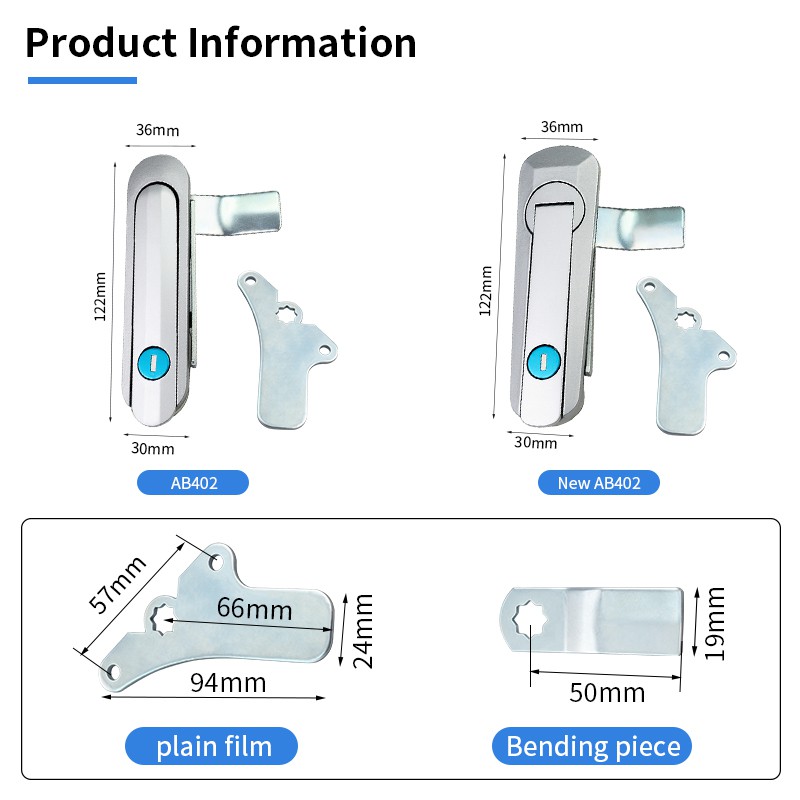

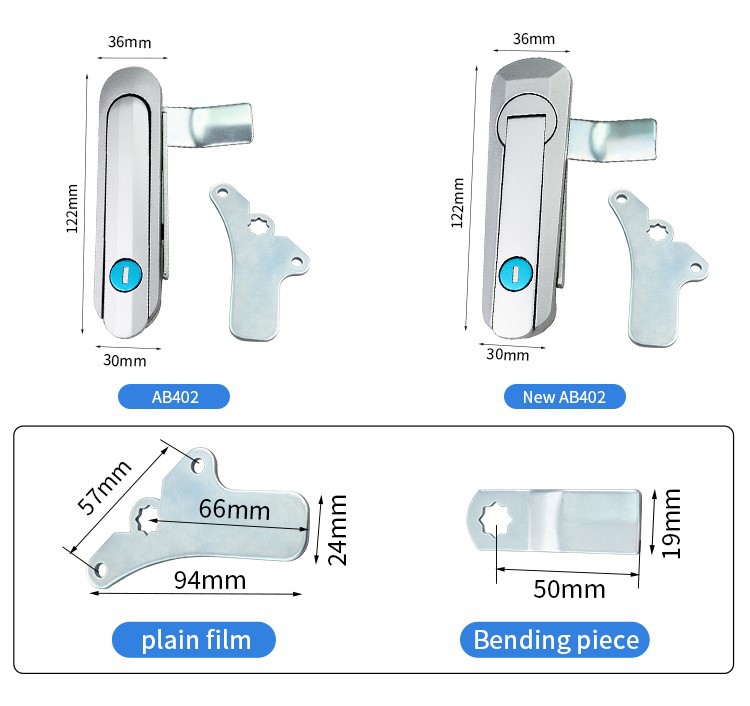

Product Specifications
| Parameter | Details |
|---|---|
| Product Name | Electrical Cabinet Door Flat Lock |
| Model | AB402 / New AB402 |
| Product Type | Flush Swing Handle Lock |
| Lock Body Material | Zinc Alloy |
| Locking Component | Carbon Steel |
| Surface Treatment | Chrome Plating |
| Operation | Key-Operated Lift-and-Turn |
| Handle Rotation | Approx. 90° |
| Locking Method | Single-Point Cam / Multi-Point Rod Linkage |
| Hole Size | 23.5 × 95.5 mm |
| Keys | 2 |
| Locking Plate | Straight / Bent |
| Typical Applications | Electrical Cabinets, Control Cabinets, Communication Cabinets, Equipment Boxes |

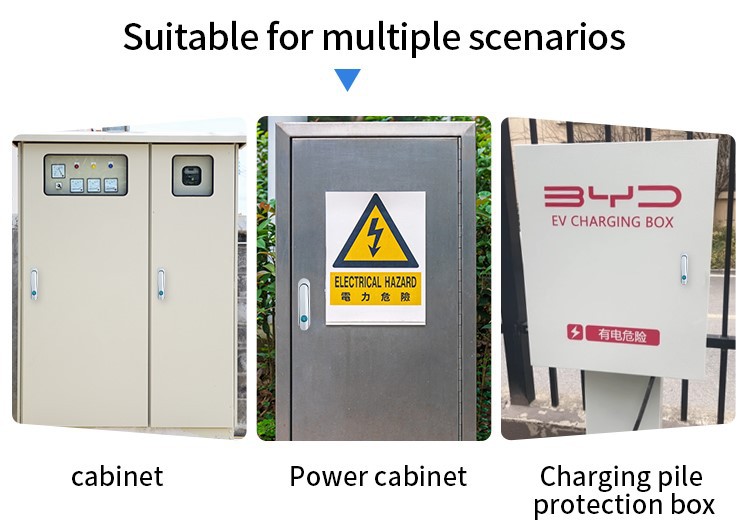

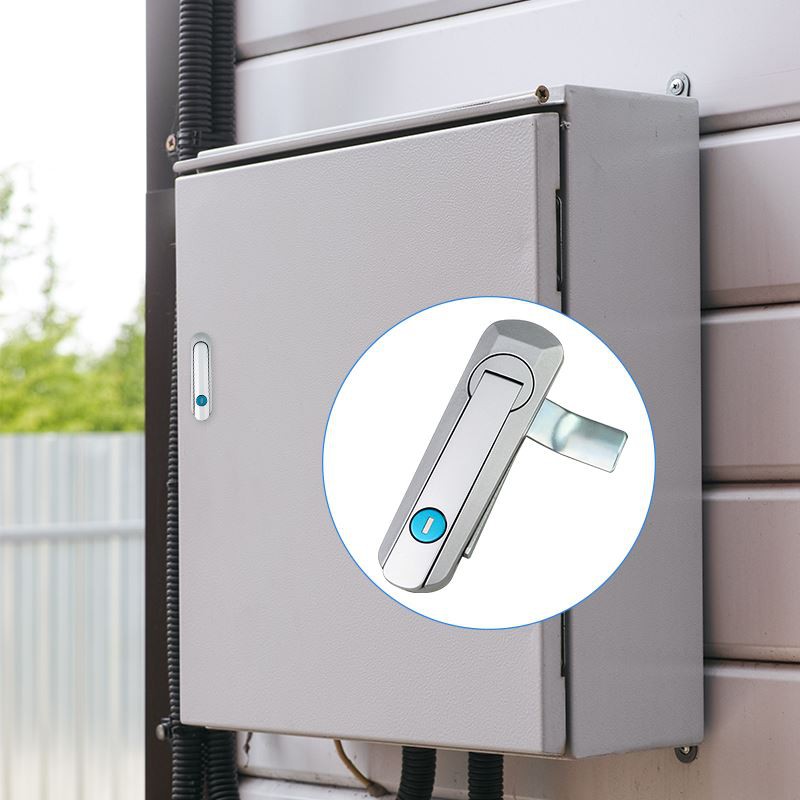

Application
The AB402 is suitable for electrical and industrial enclosure applications, including:
High- and low-voltage distribution cabinets
Electrical control cabinets
Power equipment boxes
Electrical meter boxes
Communication cabinets
Outdoor telecom enclosures
Network cabinets
Industrial control panels
Equipment enclosures
The multi-point configuration is particularly suitable for larger cabinet doors where the upper and lower sections need to be secured through a connected rod system.
