Details:
This Card drawer lock is a compact smart lock with a delicate shape that does not take up space. It is suitable for various installation scenarios and is primarily used for drawer protection.
Send Inquiry
Chat Now
Description
Send Inquiry

Products Description

The Card Drawer Lock is an electronic locking solution for desks, bedside cabinets, mobile pedestals, wardrobes, shoe cabinets, and other modern furniture. It combines an electronic access system with a built-in pull handle, creating a compact front-panel design for drawers and cabinet doors.

The lock uses a motorized spring latch and is powered by three AAA batteries. A Type-C emergency power interface provides an alternative access method when the batteries are depleted.

product-381-445

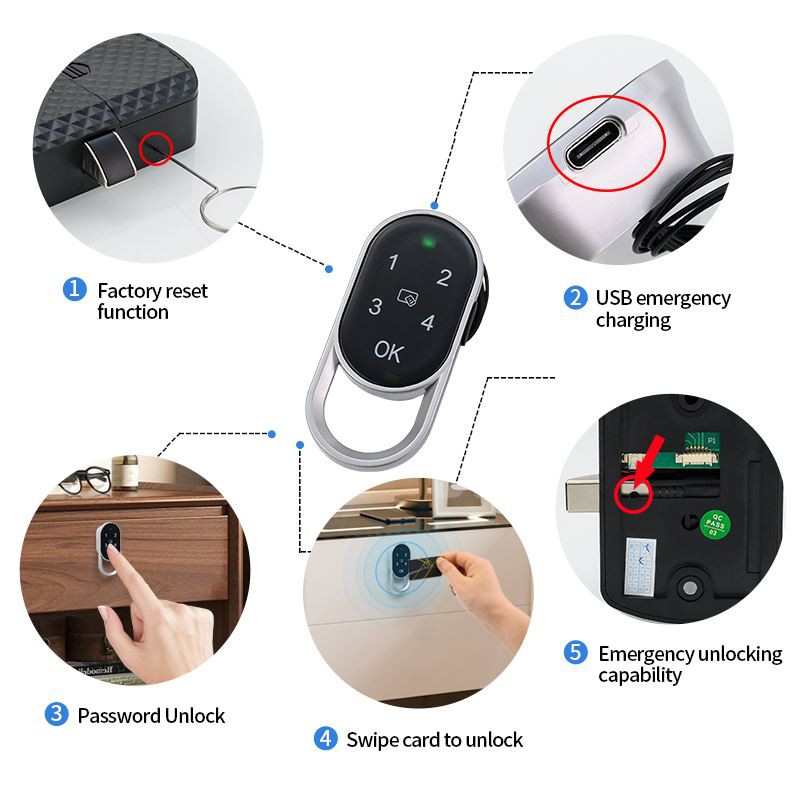

Key Features

product-750-363

Fingerprint, RFID & Password Access: Three authentication options for flexible daily use.

Built-In Pull Handle: Combines drawer pulling and locking functions in one unit.

Automatic Latching: The spring bolt engages when the drawer is pushed closed.

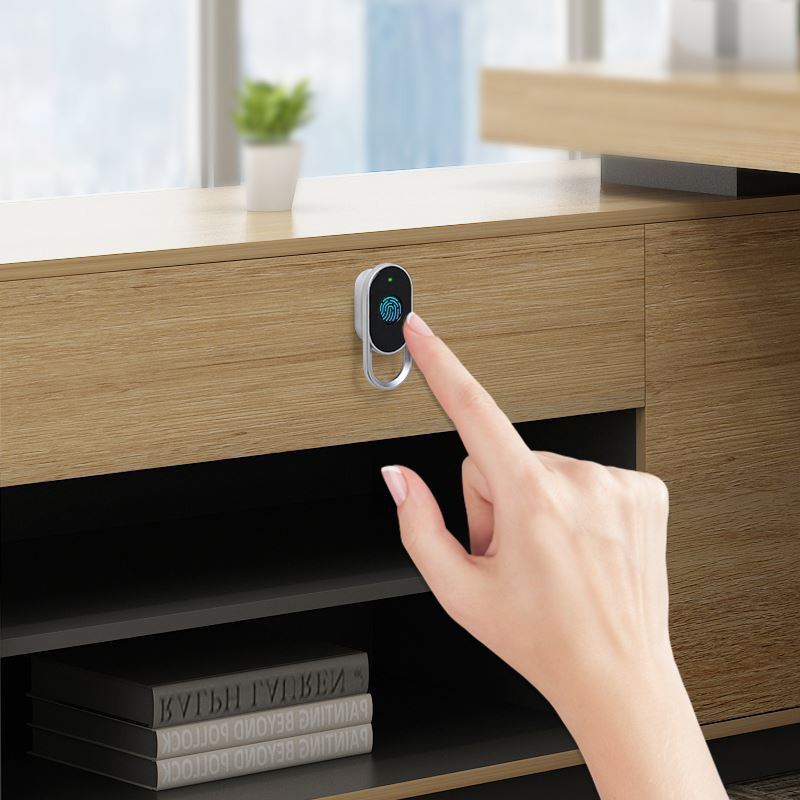

Fast Biometric Recognition: Fingerprint identification takes less than 0.5 seconds.

Emergency Type-C Power: Provides backup power when the internal batteries are exhausted.

Access & Locking

The electronic system supports fingerprint, RFID card, and password authentication. After authorized access, the motor retracts the spring latch to release the drawer.

When the drawer is pushed closed, the spring latch automatically returns to the locked position. This allows the drawer to be secured without a separate manual locking step.

Integrated Handle Design

The zinc alloy front assembly combines the access interface with a pull handle, reducing the need for separate drawer hardware.

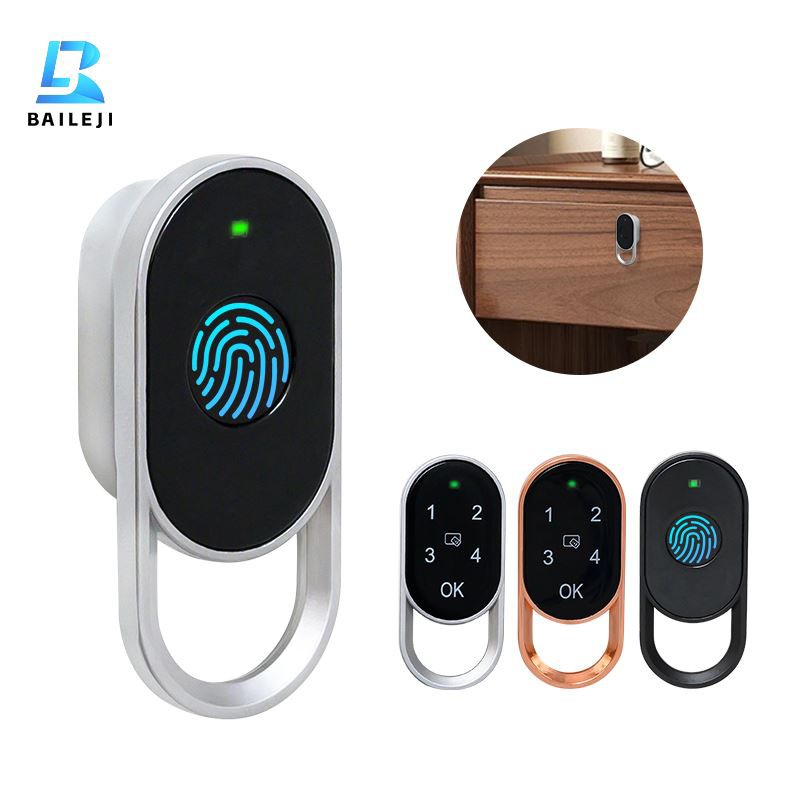

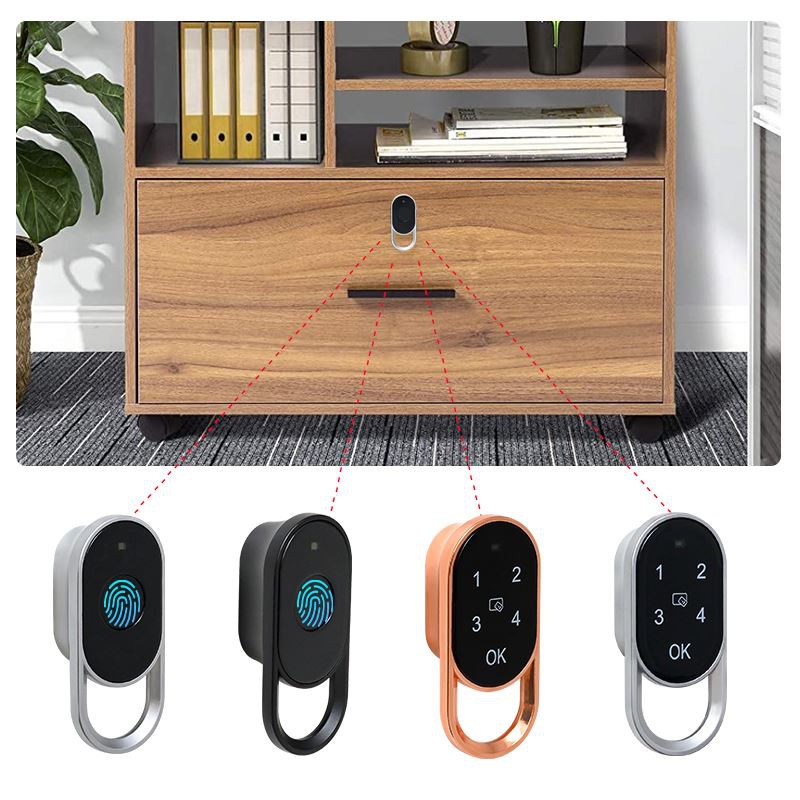

The front panel measures approximately 58 × 26 mm and is available in silver, matte black, and rose gold finishes.

Construction

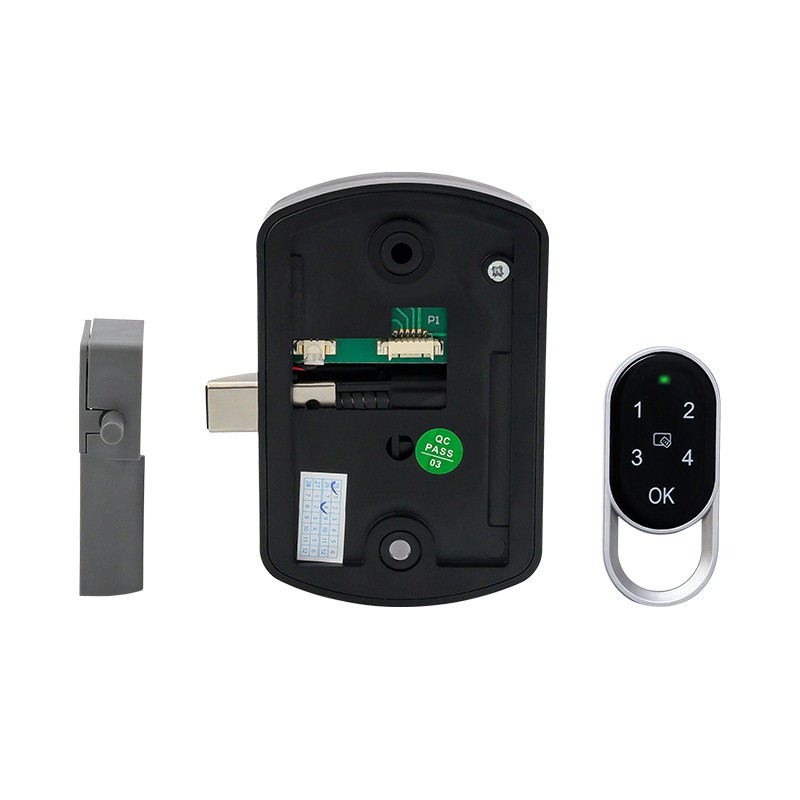

The main housing is made from die-cast zinc alloy, while the rear enclosure uses impact-resistant ABS. The locking bolt is made from carbon steel and is designed for repeated spring-latch operation.

The semiconductor fingerprint reader is integrated into the front interface, with a pinhole factory reset function provided for system management.

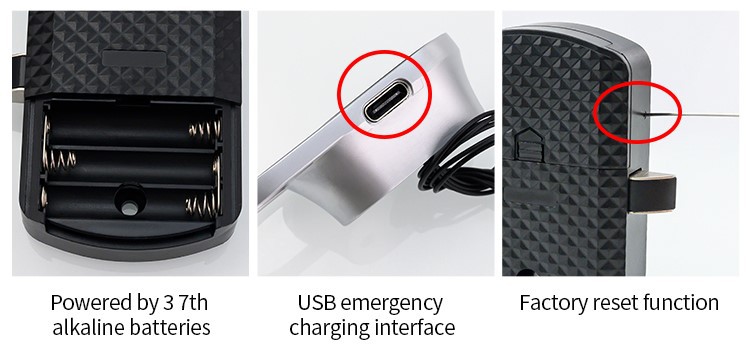

Power Supply

The lock operates on 3 AAA alkaline batteries. When the battery level becomes insufficient, the Type-C port can be connected to an external power source to temporarily activate the lock.



Product Specifications

Parameter Details
Product Name Card Drawer Lock
Product Type Electronic Drawer Lock with Handle
Main Housing Die-Cast Zinc Alloy
Rear Housing ABS
Latch Carbon Steel Spring Latch
Access Methods Fingerprint / RFID Card / Password
Fingerprint Recognition <0.5 s
Power Supply 3 × AAA Batteries
Emergency Power Type-C

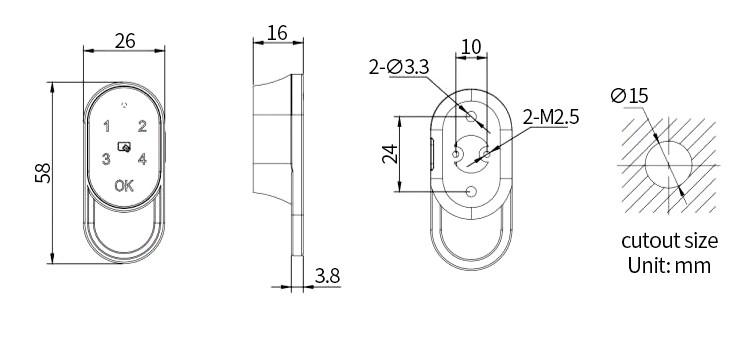

Front Panel Size Approx. 58 × 26 mm
Mounting Hole Ø15 mm
Finish Options Silver / Matte Black / Rose Gold
Locking Type Single-Point Automatic Latch

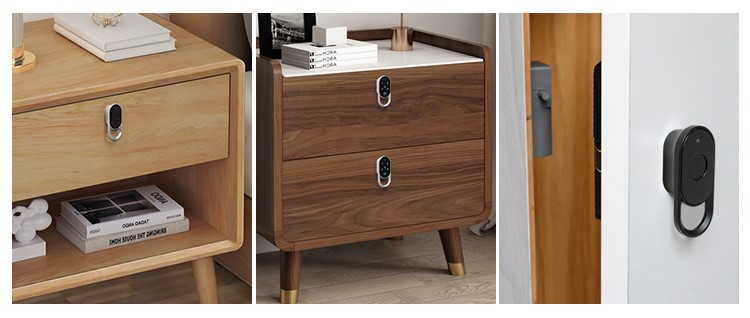

Application



product-750-318



Wooden office desks

Bedside cabinets

Mobile pedestals

Wardrobes

Shoe cabinets

Home storage drawers

Modern furniture



FAQ



Q: Can the lock be installed on different types of furniture?

A: Yes, provided the furniture has sufficient installation space and meets the required mounting dimensions. It is intended for drawers and cabinet structures commonly found in office and home furniture.

Q: Is the handle included with the locking mechanism?

A: Yes. The pull handle is integrated into the front assembly rather than supplied as a separate piece.

Q: How should I prepare the furniture for installation?

A: The required mounting hole is Ø15 mm. The panel thickness, internal clearance, and strike plate position should also be checked before installation.

Q: Can this model be used for OEM furniture production?

A: Yes. OEM and bulk production requirements can be evaluated based on the furniture design, quantity, finish, and installation specifications.
