Products Description

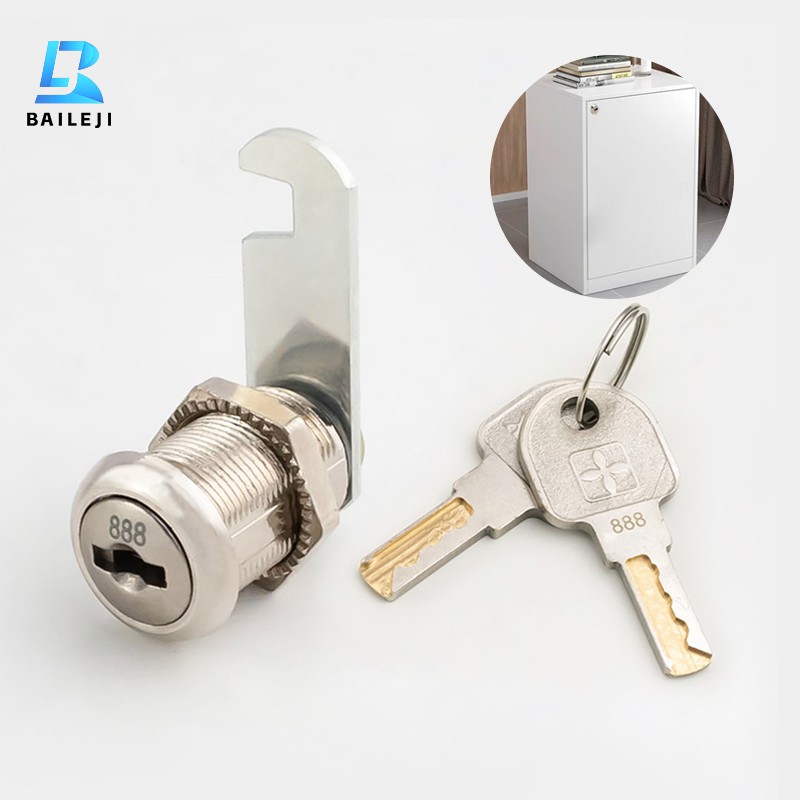

The Anti-Theft Cabinet Lock is a compact cam lock designed to provide dependable security for cabinets, drawers, lockers, and furniture. Its key-operated 90° quarter-turn mechanism offers straightforward locking and unlocking for everyday use.

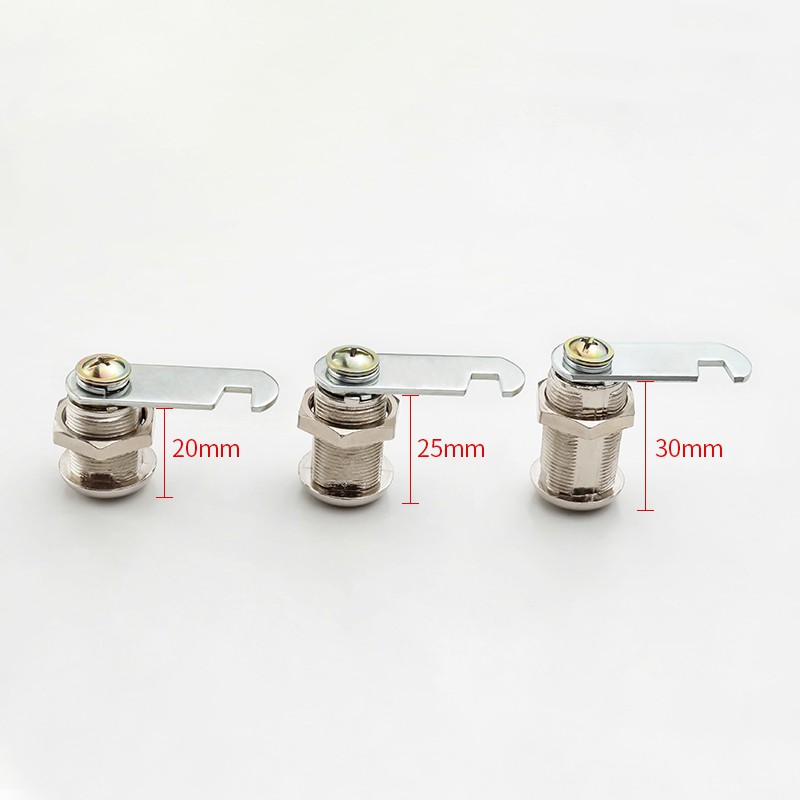

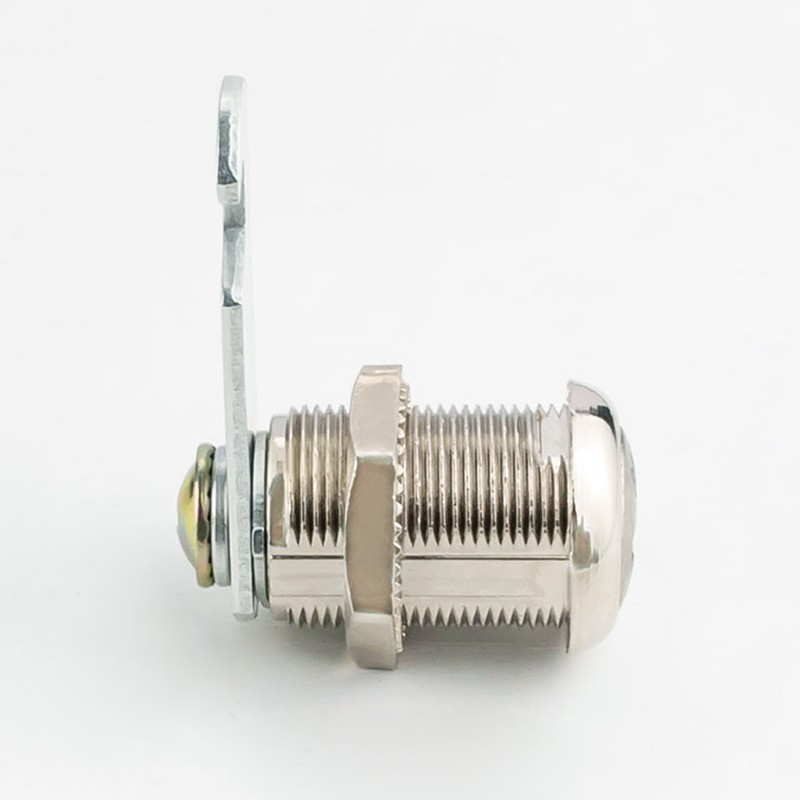

The lock is available with 20 mm, 25 mm, or 30 mm cylinder lengths, allowing it to accommodate different cabinet structures. An anti-rotation retaining ring helps maintain a stable installation and prevents unwanted movement of the lock body.
With a zinc alloy housing and chrome-plated finish, this cabinet lock combines a clean appearance with durability for regular use on both metal and wooden furniture.

Key Features

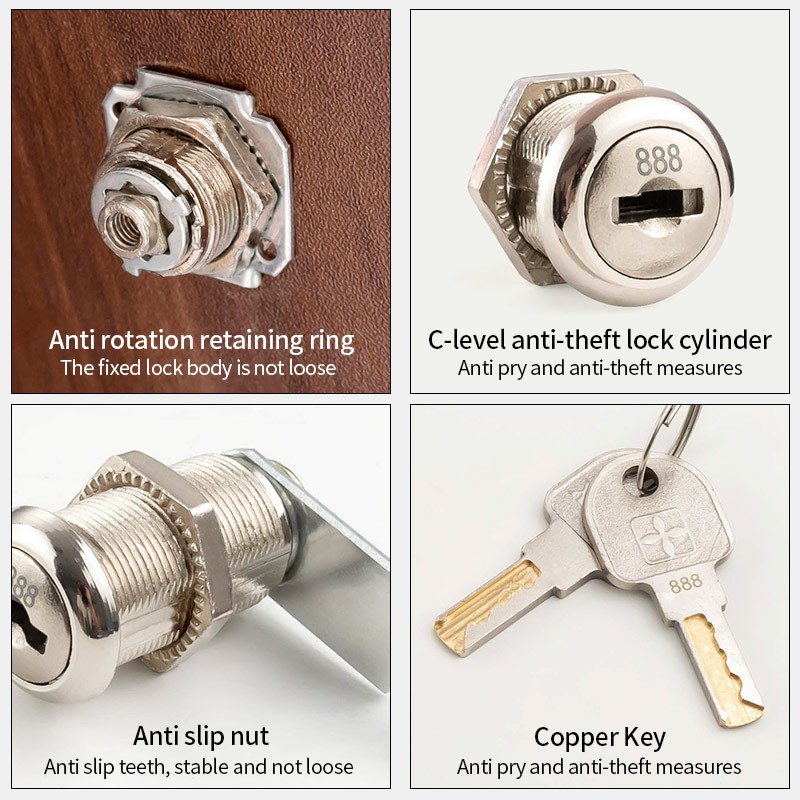

Enhanced Locking Security
The C-grade lock cylinder is designed for applications requiring stronger resistance to unauthorized opening than standard cabinet locks.
Stable Mounting
The anti-rotation retaining ring helps keep the lock securely aligned after installation.
Flexible Cylinder Options
Three cylinder lengths are available to suit different cabinet and door thicknesses.
Smooth Quarter-Turn Operation
The 90° cam mechanism provides simple key-operated access without complicated operation.
Basic Product Information
| Parameter | Details |
|---|---|
| Product Type | Anti-Theft Cabinet Lock / High-Security Cam Lock |
| Application | Metal cabinets, wooden cabinets, filing cabinets, drawers, lockers, toolboxes, and office furniture |
| Locking Method | 90° quarter-turn cam locking |
| Operation | Key-operated |
| Lock Core | C-grade lock cylinder |

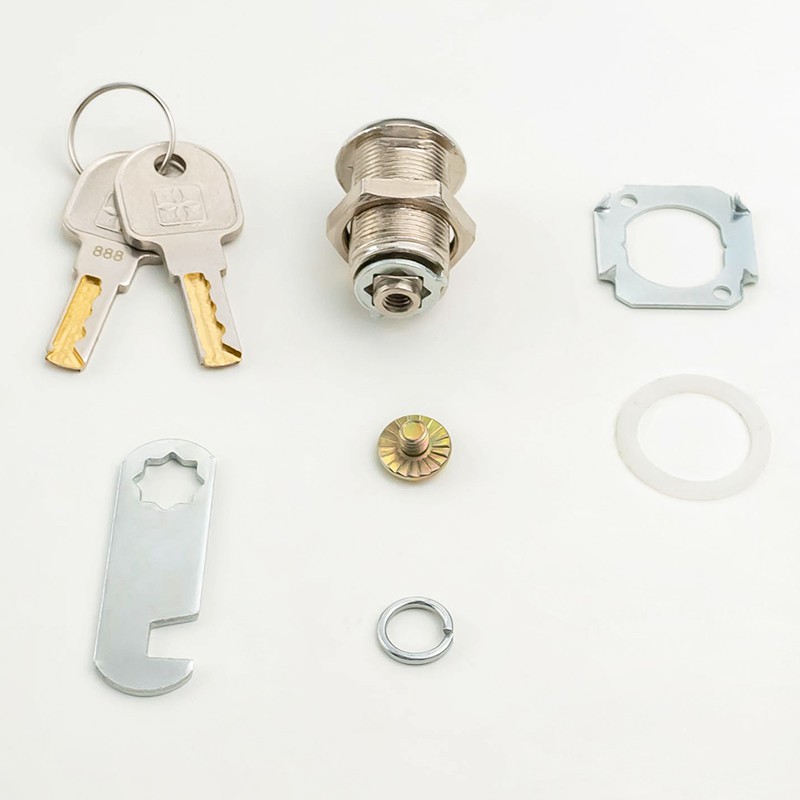

| Key | 2 copper keys |
| Main Material | Zinc alloy |
| Finish | Chrome-plated |

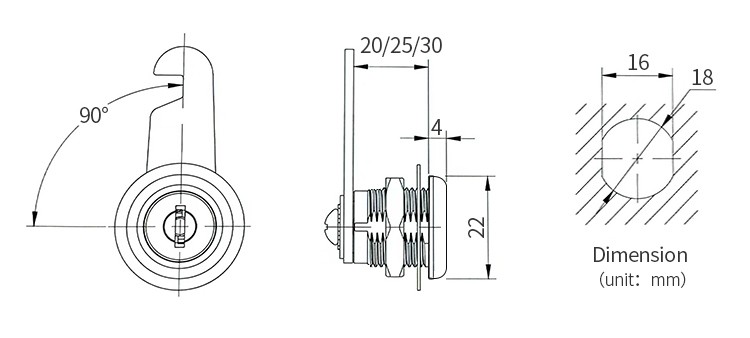

| Head Diameter | 22 mm |
| Cylinder Length | 20 / 25 / 30 mm |
| Installation | Anti-rotation retaining ring |
Specifications
| Item | Specification |
|---|---|
| Main Material | Zinc alloy |
| Key | 2 C-grade copper keys |
| Finish | Chrome-plated |
| Head Diameter | 22 mm |
| Cylinder Length | 20 / 25 / 30 mm |
| Rotation Angle | 90° |
| Locking Type | Quarter-turn cam locking |

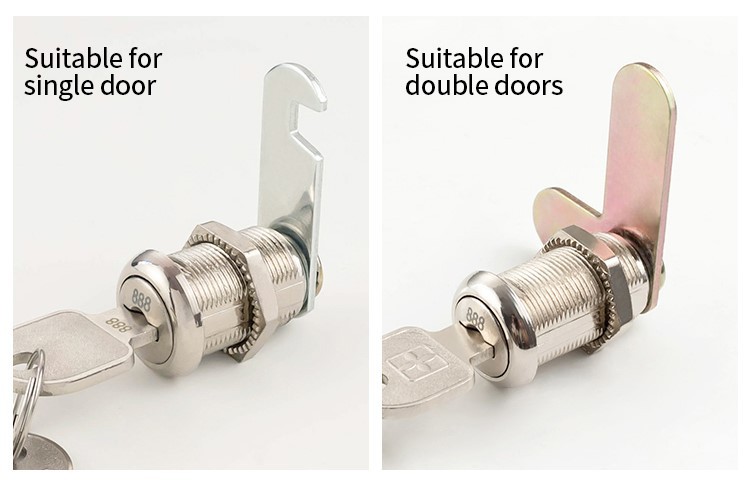

| Application | Single doors, double doors, drawers, cabinets, etc. |

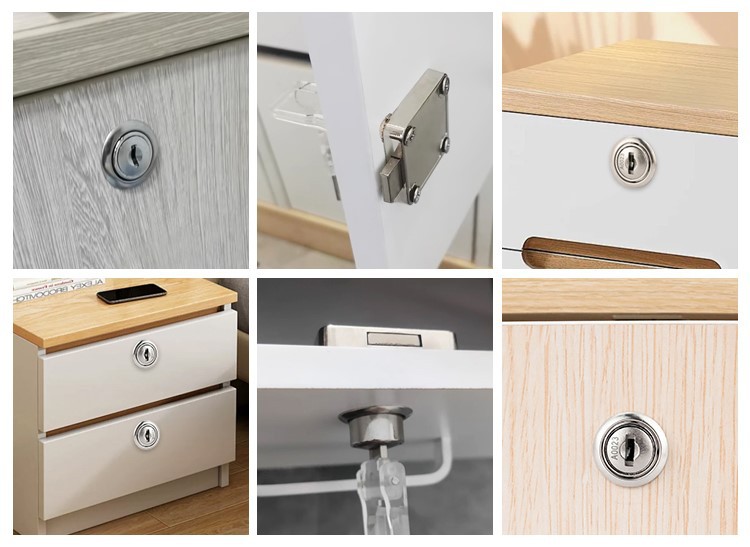

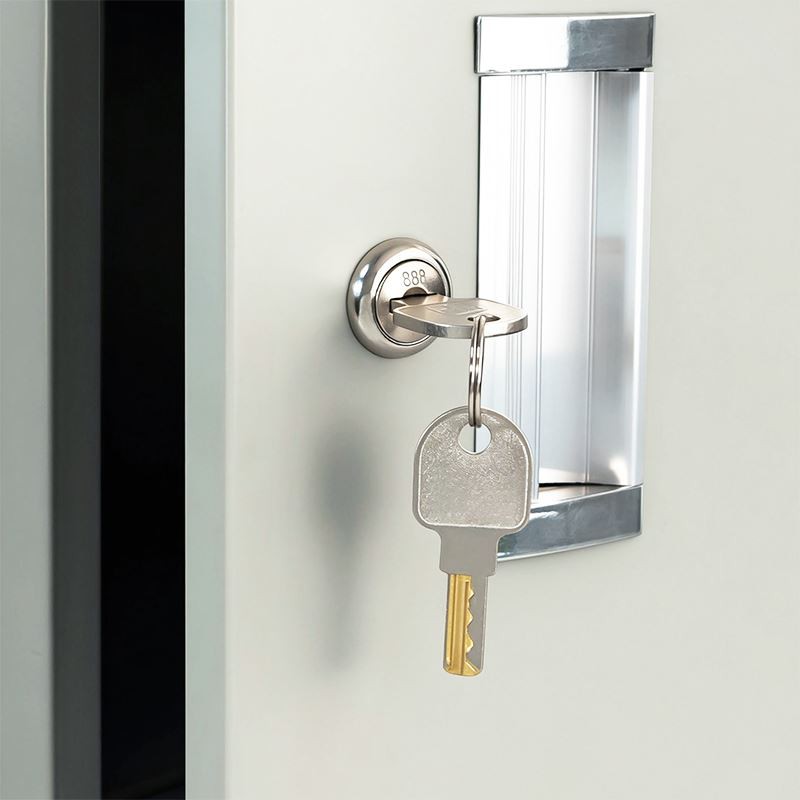

Application

Filing cabinets
Office furniture
Metal cabinets
Wooden cabinets
Drawers and pedestals
Storage lockers
Toolboxes
Mailboxes
Equipment enclosures
