Products Description

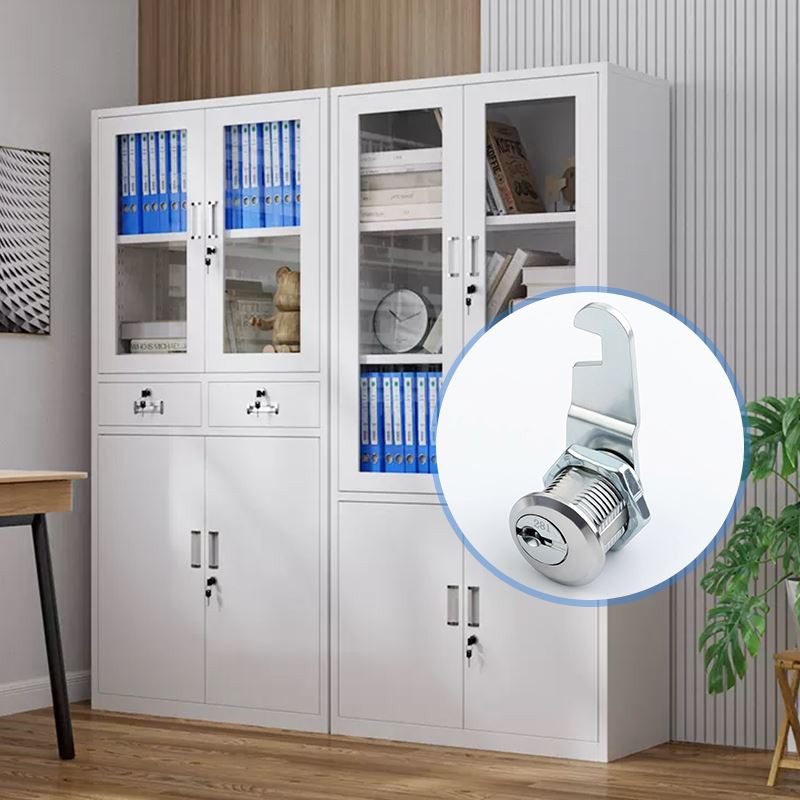

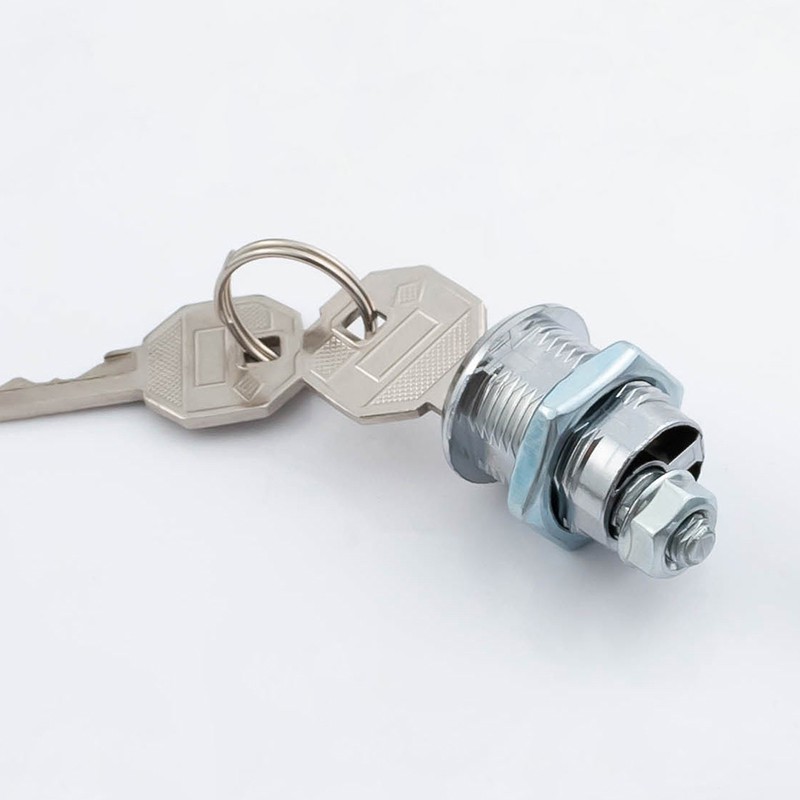

The Same Key Cam Lock is a quarter-turn cabinet lock designed for applications where multiple cabinets or compartments need to be operated with a common key. Its compact zinc alloy housing provides a durable structure, while the chrome-plated surface gives it a clean finish for office furniture, storage cabinets, and general enclosure applications.

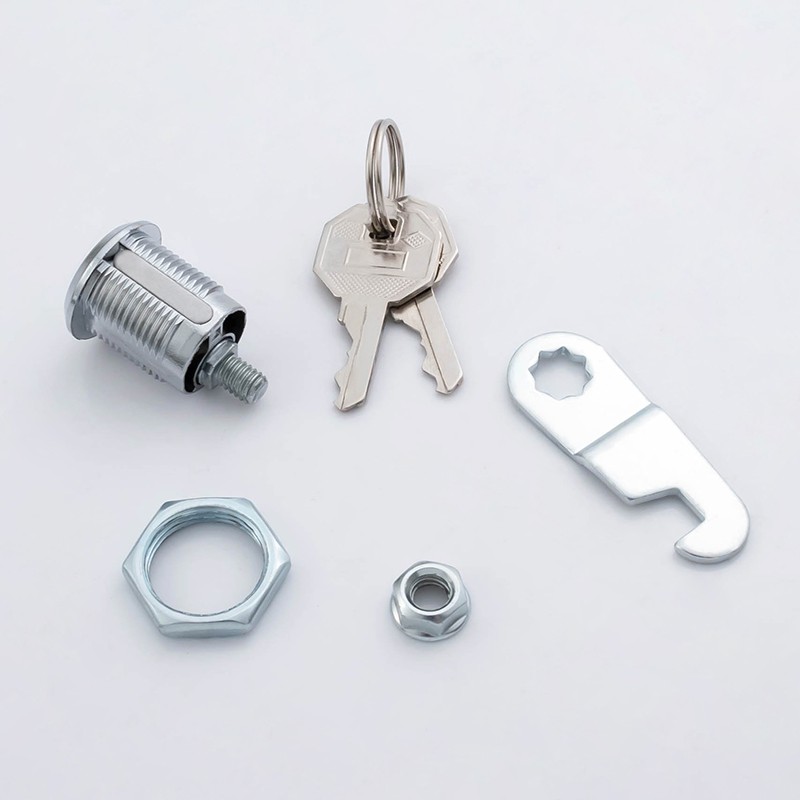

The lock uses a 2 mm zinc-plated carbon steel hook cam that rotates 90° to engage behind the cabinet frame. This design provides firm door retention while keeping the locking operation simple and convenient.

The Keyed-Alike (KA) option allows multiple locks to be matched to the same key, making it suitable for installations that require centralized access to several cabinets. Keyed-Different (KD) configurations are also available for applications where individual locks require separate keys.

Key Features

Keyed-Alike Access – Multiple locks can be operated with the same key, making cabinet access easier to manage.

Durable Zinc Alloy Construction – The solid zinc alloy housing is suitable for regular use in office furniture and storage enclosures.

2 mm Steel Hook Cam – The zinc-plated carbon steel cam provides firm engagement behind the cabinet frame.

90° Quarter-Turn Operation – Provides quick and convenient locking and unlocking.

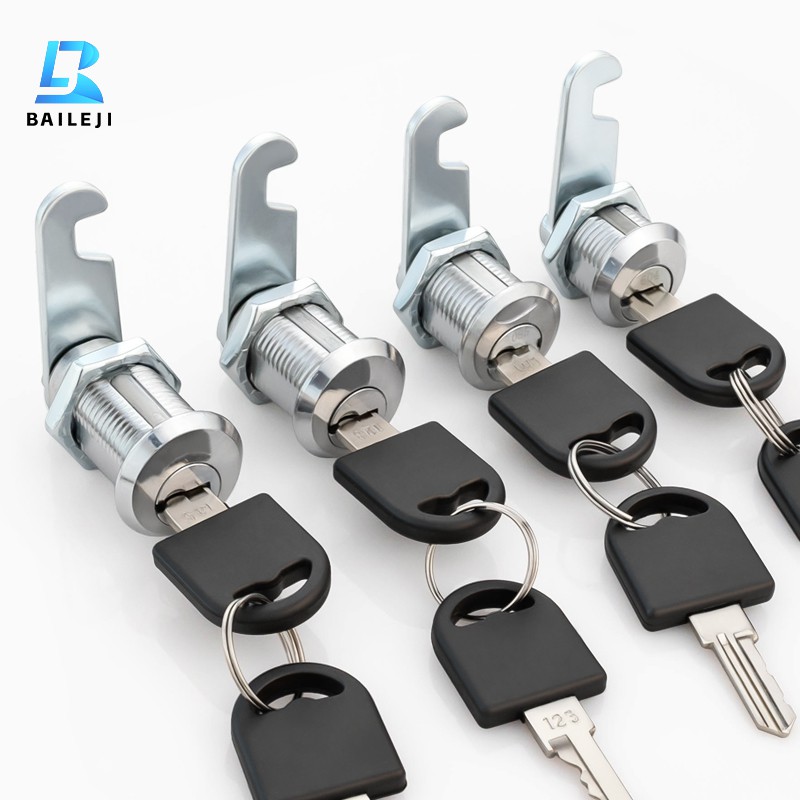

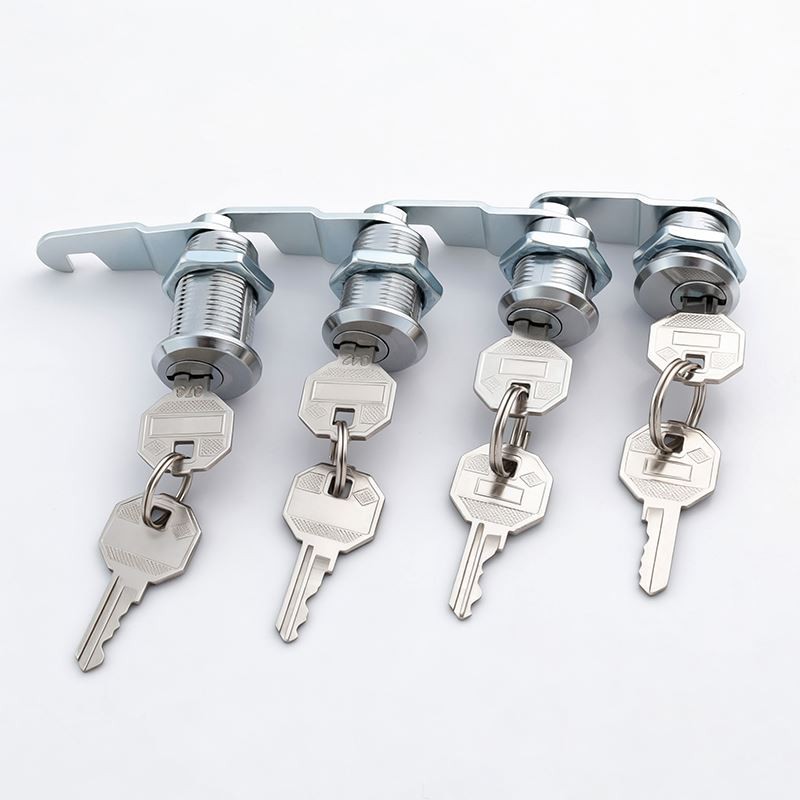

Multiple Key and Cylinder Options – Available with 16 / 20 / 25 / 30 mm cylinder lengths and metal or black ABS plastic bow-style keys.

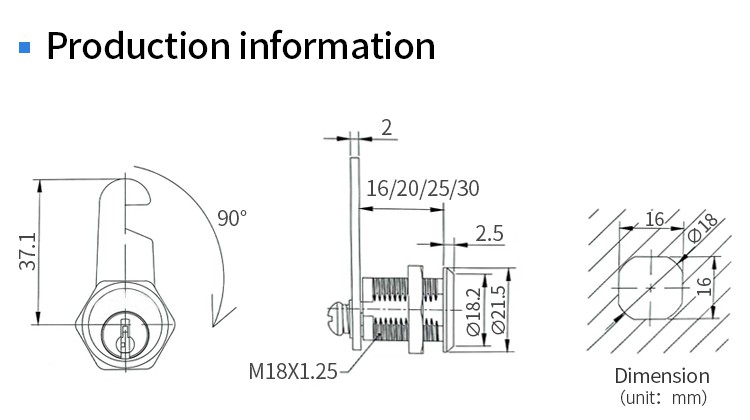

Product Specifications

Parameter	Details
Product Type	Same Key Cam Lock
Main Material	Zinc alloy
Hook Cam Material	Zinc-plated carbon steel
Hook Cam Thickness	2 mm
Finish	Chrome-plated
Head Diameter	21.5 mm
Cylinder Thread	M18 × 1.25
Cylinder Length	16 / 20 / 25 / 30 mm
Rotation Angle	90°
Panel Cutout	18 mm × 16 mm Double-D
Keying Options	Keyed-Alike (KA) / Keyed-Different (KD)

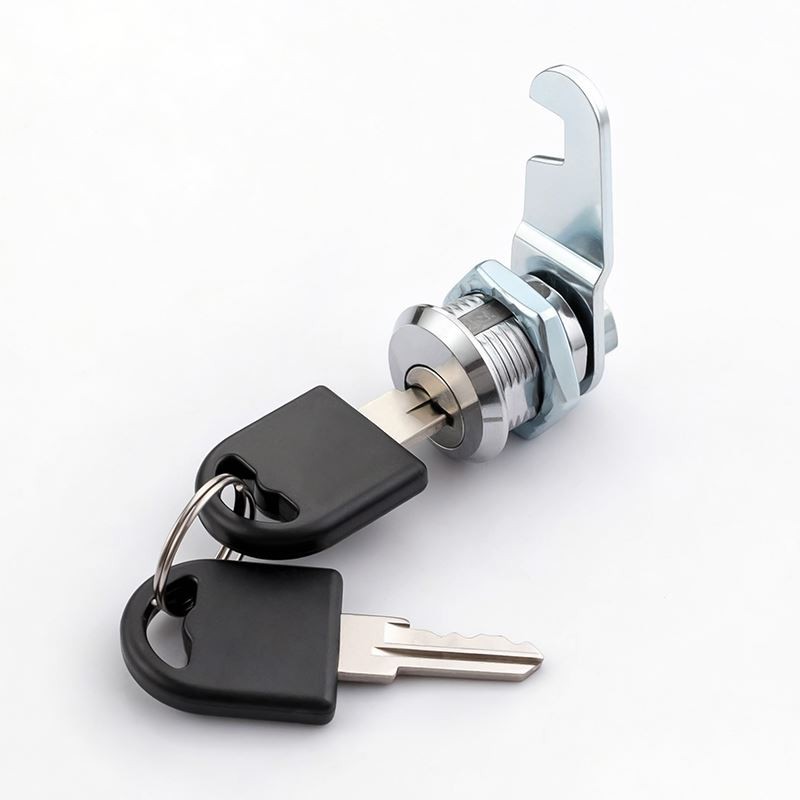

Keys	2 keys as standard; available with metal or black ABS plastic bow-style keys

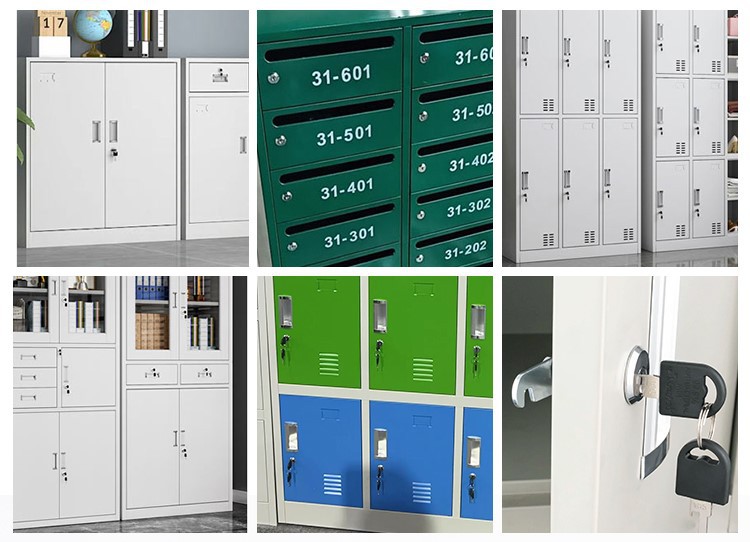

Application

This cabinet cam lock is suitable for:

Filing cabinets

Office storage cabinets

Employee lockers

Mailbox cabinets

Retail display cabinets

Drawer pedestals

Toolboxes

Metal enclosures

Wooden furniture

Multi-door cabinet systems

The same key cam lock is particularly suitable for projects with multiple cabinets that need to be accessed using one common key.

FAQ

Q: Can I use one key for multiple Same Key Cam Locks?

A: Yes. The Keyed-Alike (KA) option is designed for this purpose. Multiple locks can be matched to the same key combination, allowing one key to operate a group of cabinets or compartments.

Q: Is this cam lock suitable for cabinets with different door or panel thicknesses?

A: Yes. The lock is available with 16 mm, 20 mm, 25 mm, and 30 mm cylinder lengths. The appropriate length can be selected according to the cabinet panel and installation requirements.

Q: What is the difference between a Same Key Cam Lock and a standard cam lock?

A: The main difference is the keying configuration. A Same Key Cam Lock can be supplied in a Keyed-Alike (KA) configuration, allowing multiple locks to work with the same key. This is useful when several cabinets need to be managed under one key.

Q: Can you provide different keying configurations for bulk orders?

A: Yes. The locks can be supplied with Keyed-Alike (KA) or Keyed-Different (KD) configurations. For larger cabinet projects, the keying arrangement can be specified according to the customer's access management requirements.
