Details:
This locker locks office works adopts touch-sensitive buttons, with convenient password unlocking operation and multiple security protection mechanisms, providing strong anti-theft performance. Entering the wrong password four times in a row will trigger an alarm prompt and automatically lock the keyboard for 60 seconds. It supports a virtual password function and can add any number before or after the correct password to prevent the risk of password leakage.
Send Inquiry
Chat Now
Description
Send Inquiry

Products Description

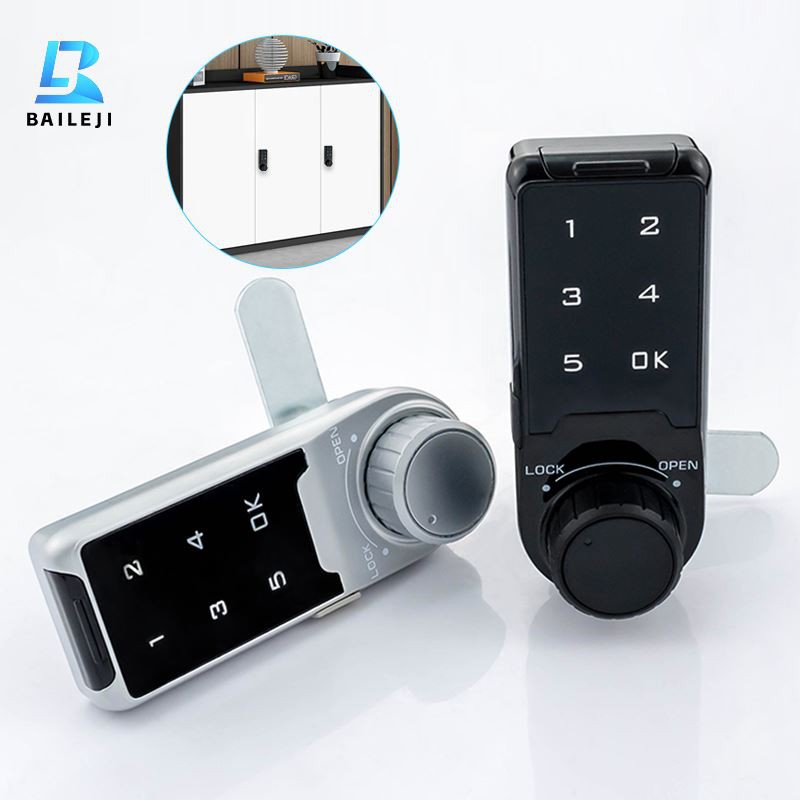

The Digital Touch Keypad Locker Cam Lock is designed for gym and spa lockers, school lockers, office employee cabinets, steel file cupboards, mailboxes, and wooden storage doors. It combines a touch keypad with a rotary knob, providing convenient keyless access while maintaining a compact cabinet hardware design.

The lock uses a 90° cam mechanism and can be installed in either horizontal or vertical orientation, making it suitable for different locker and cabinet layouts

product-364-375

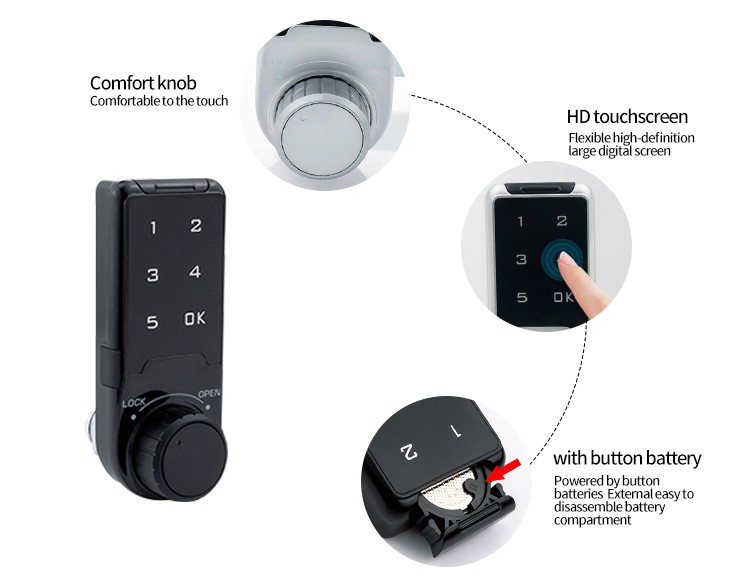

Key Features

product-750-588

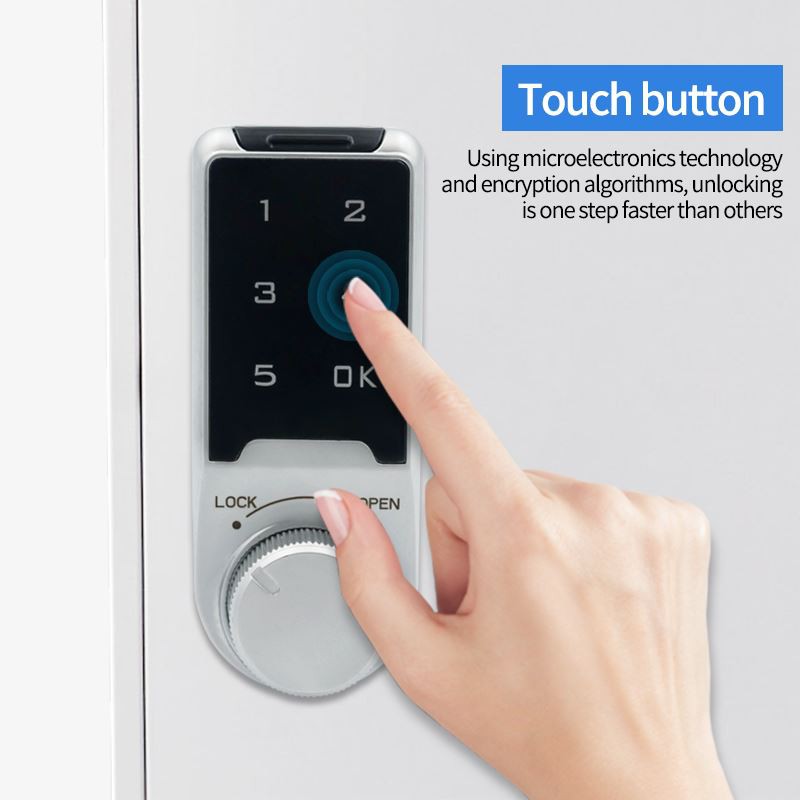

Touch Keypad Access: Backlit digital keypad provides convenient code-based unlocking.

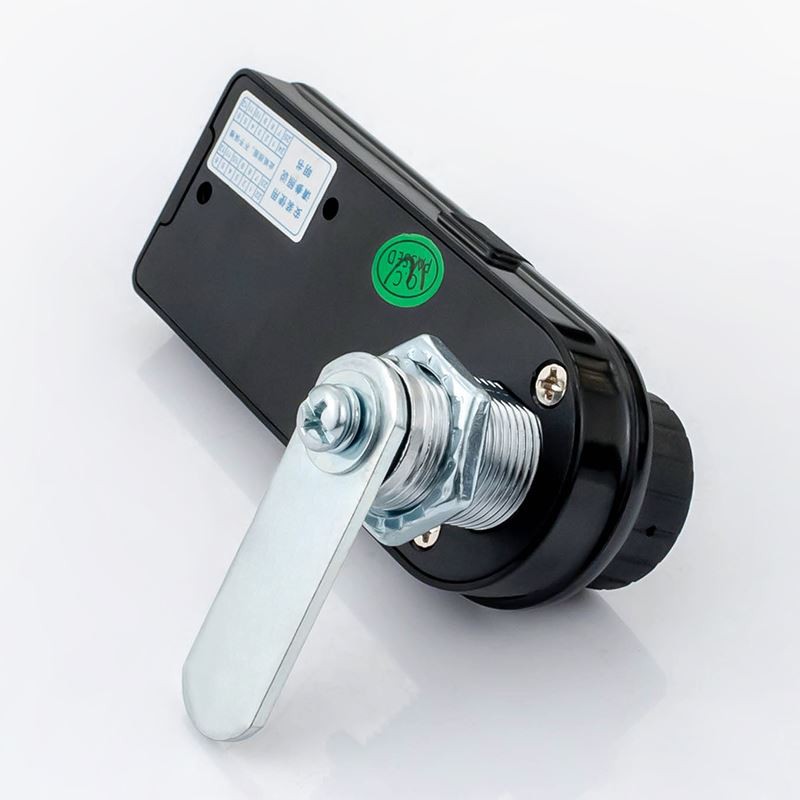

90° Rotary Operation: Manual knob rotation engages the rear cam for straightforward locking.

Horizontal & Vertical Installation: Supports different mounting orientations.

Clear Status Markings: Lock/Open indicators make the operating position easy to identify.

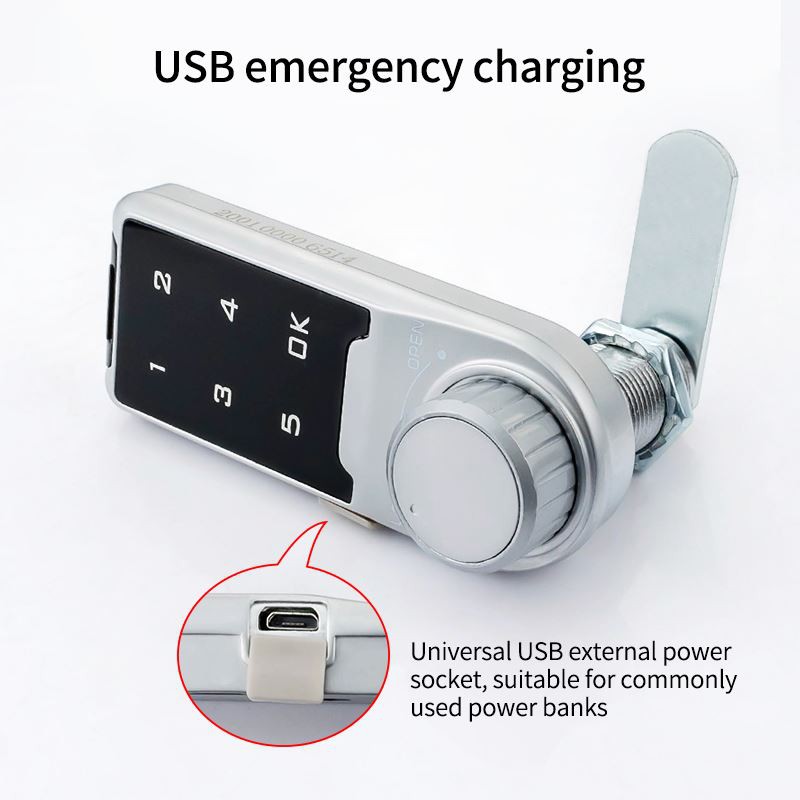

Emergency USB Power: Micro-USB port provides backup power when required.

Product Specifications

Parameter Details
Product Name Locker Locks Officeworks
Product Type Digital Touch Keypad Cam Lock
Main Material Zinc Alloy
Cam Material Zinc-Plated Carbon Steel

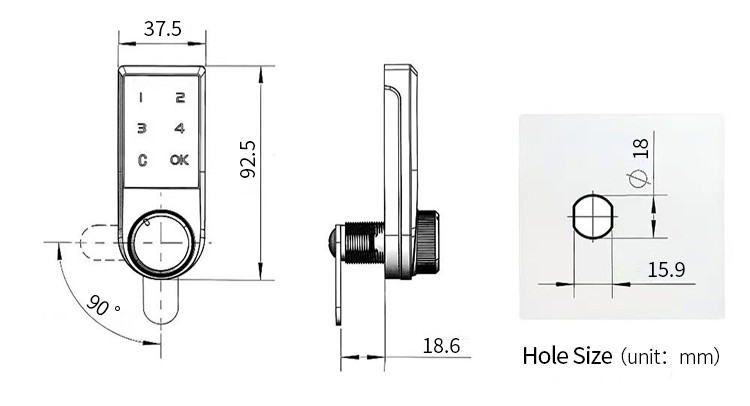

Housing Size 92.5 × 37.5 mm
Cylinder Depth 18.6 mm
Operation Touch Password + 90° Rotary Knob
Installation Horizontal / Vertical
Panel Cutout 18 × 15.9 mm Double-D
Emergency Power Micro-USB
Finish Satin Silver / Matte Black
Locking Type Single-Point Cam

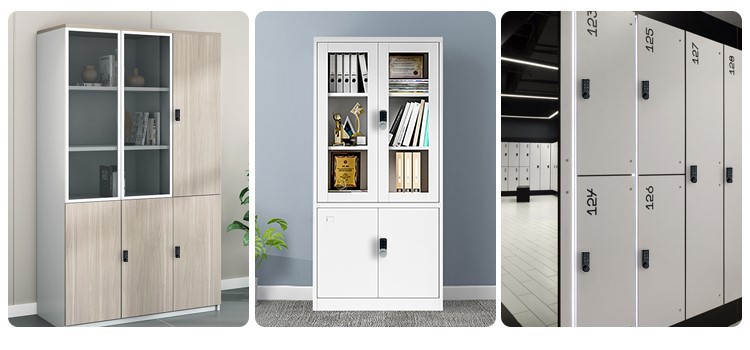

Application



product-750-350



Gym and spa lockers

School lockers

Office employee cabinets

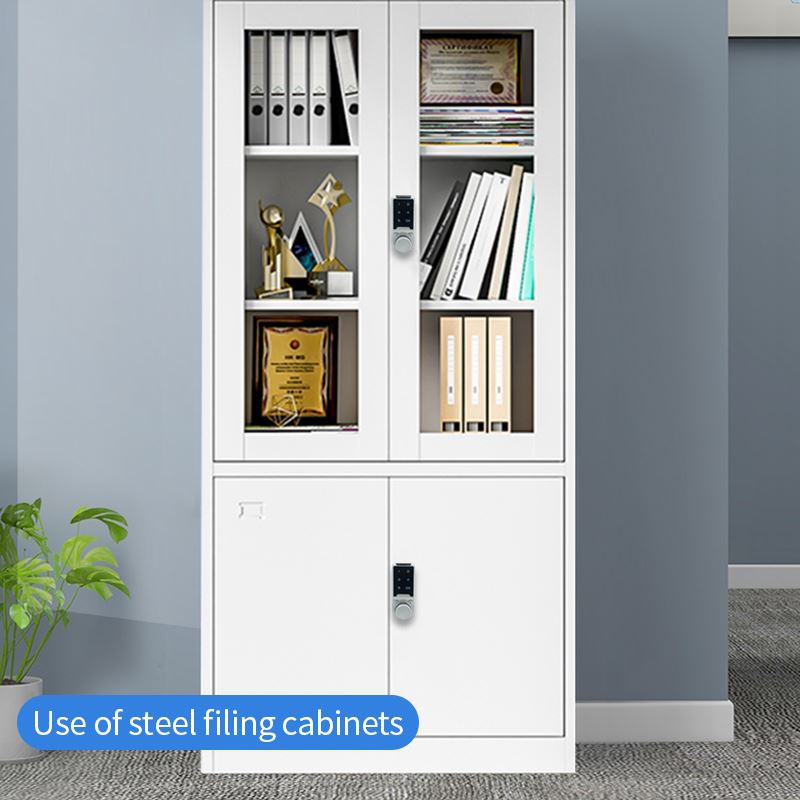

Steel file cupboards

Mailboxes

Wooden storage doors



FAQ



Q: Can this lock replace a conventional cam lock?

A: Yes. It can be used for retrofit applications when the existing cabinet or locker meets the required mounting and cam dimensions.

Q: Can it be mounted vertically?

A: Yes. The design supports both horizontal and vertical installation according to the cabinet structure.

Q: What happens if the electronic power is unavailable?

A: The external Micro-USB port can provide emergency power to activate the electronic system.
